  5. Engine-Driven Welder Generator, Trailblazer 330 Series, Electric Start, 12,000 W Peak
No Product Image Available

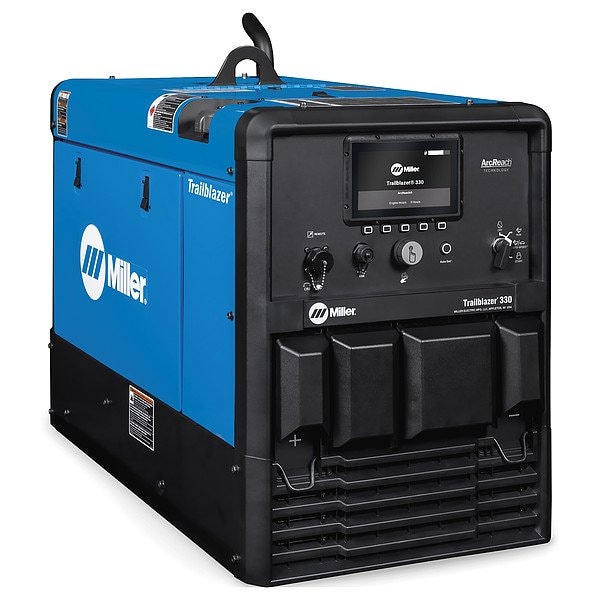

Engine-Driven Welder Generator, Trailblazer 330 Series, Electric Start, 12,000 W Peak

  • Mfr # 907831001

  • Zoro # G010607418

product price:  $13,556.99
/ea
Additional $260.00 delivery surcharge applies per item.
See details

Key Features

Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
907831001
Zoro #
G010607418
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
26.5 in
Overall Width
20.13 in
Overall Depth
37.06 in

Details

Item
Engine-Driven Welder Generator
Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
Includes
10-Pin (Direct Connect for Spoolgun), 14-pin Recptacle, Advanced Auto-speed, Advanced Weld controls (Dynamic Dig, Pulse TIG, Inductance), ArcReach, Autoset, Excel power, Full Process Selection, LCD Display, USB Port
Standards
CSA
Welding Processes
Flux-Cored (FCAW), MIG (GMAW), Stick (SMAW)
Phase
Single-Phase
Model
Trailblazer 330
Weight
400 lb
Circuit Breaker
Yes
TIG Welding Output @ Duty Cycle
330 A @ 30 V,100%
TIG Welding Maximum Output Current
330 A
Stick Welding Output @ Duty Cycle
330 A @ 30 V,100%
Welding Mode
CC/CV
Oil Capacity
1 1/2 qt
Polarity
DC
Engine Model
Kohler CH730
Fuel Tank Capacity
11 gal
Stick Welding Maximum Output Current
330 A
MIG Welding Maximum Output Current
330 A
Engine Displacement
44 cu in
Generator Fuel Type
Gasoline
MIG Welding Output @ Duty Cycle
330 A @ 30 V,100%
MIG Welding Minimum Output Current
20 A
Stick Welding Minimum Output Current
20 A
Horsepower
23.5 hp
TIG Welding Minimum Output Current
20 A
Generator Outlets
GFCI 120 V (2) Excel Power (120V @2400watts), NEMA 14-50R 120/240V AC, NEMA 6-50R 240V AC
For Material Type
Aluminum, Stainless Steel, Steel
Open Circuit Voltage
107 V DC
Color
Black, Blue
Sound Level
150 A load: 65 dB @ 23 ft (Weld), 330 A load:73.5 dB @ 23 ft (Weld), 73.5 dB @ 23 ft (Auxiliary power)
Enhanced Process
Air Carbon Arc Cutting and Gouging (CAC-A), Pulsed TIG (GTAW-P), TIG DC Welding (GTAW-DC)

Description

Engine-Driven Welder Generator, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 330 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 330 A @ 30 V,100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 330 A @ 30 V,100 Percent
