No Product Image Available
Shop MILLER ELECTRIC

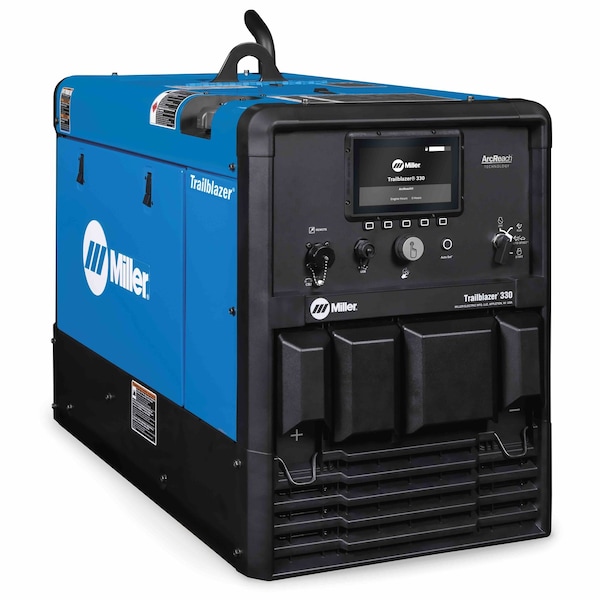

Engine-Driven Welder Generator, Trailblazer 330 Series, Electric Start, 12,000 W Peak

  • Mfr # 907831

  • Zoro # G710607466

product price:  $12,732.99
/ea
Additional $260.00 delivery surcharge applies per item.
See details

Key Features

Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907831
Zoro #
G710607466
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
37.06 in
Overall Height
26.5 in
Overall Width
20.13 in
For Stainless Steel Thickness - Maximum
46,089 in
For Aluminum Thickness - Maximum
46,089 in
For Aluminum Thickness - Minimum
20 ga
For Steel Thickness - Maximum
46,089 in
For Stainless Steel Thickness - Minimum
24 ga
For Steel Thickness - Minimum
20 ga

Details

Item
Engine-Driven Welder Generator
Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
Phase
Single
Standards
cCSAus
Application
Aluminum Welding, Fabrication, Mobile Fabrication & MRO, Structural Welding
Includes
10-Pin (Direct Connect for Spoolgun), Advanced Auto-Speed, Advanced Weld Controls (Dynamic DIG, Pulse TIG, Inductance), ArcReach, Auto-Set Technology, Full Process Selection, LCD Display, USB Port
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Model
Trailblazer 330
Engine Model
Kohler CH730
Fuel Tank Capacity
11 gal
Weight
400 lb
TIG Welding Output @ Duty Cycle
330 A @ 30 V, 100%
Oil Capacity
1 1/2 qt
Horsepower
23.5 hp
Generator Fuel Type
Gasoline
Circuit Breaker
Yes
Stick Welding Minimum Output Current
20 A
TIG Welding Minimum Output Current
20 A
MIG Welding Maximum Output Current
330 A
Engine Displacement
44.2 cu in
Generator Outlets
(2) GFCI 120V AC, NEMA 14-50R 120/240V AC, NEMA 6-50R 240V AC
Polarity
DC
MIG Welding Minimum Output Current
20 A
Welding Mode
CC/CV
Stick Welding Maximum Output Current
330 A
Stick Welding Output @ Duty Cycle
330 A @ 30 V, 100%
Open Circuit Voltage
107 V DC
TIG Welding Maximum Output Current
330 A
MIG Welding Output @ Duty Cycle
330 A @ 30 V, 100%
For Material Type
Aluminum, Stainless Steel, Steel
Sound Level
150 A load: 65 dB @ 23 ft (Weld), 330 A load:73.5 dB @ 23 ft (Weld), 73.5 dB @ 23 ft (Auxiliary power)
Color
Black, Blue
Remote Connection Type
14-Pin (Miller)
Enhanced Process
Pulsed TIG (GTAW-P)
Amperage TIG - Maximum
330 A
Amperage Stick - Maximum
330 A
Amperage Stick - Minimum
20 A
Rated Output @ Duty Cycle (TIG)
330 A @ 30 V, 100%
Welding Power Source Type
CC/CV
Amperage MIG - Minimum
20 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage MIG - Maximum
330 A
Rated Output @ Duty Cycle (Stick)
330 A @ 30 V, 100%
Amperage TIG - Minimum
20 A
Rated Output @ Duty Cycle (MIG)
330 A @ 30 V, 100%

Description

Engine-Driven Welder Generator, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 330 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 330 A @ 30 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 330 A @ 30 V, 100 Percent
