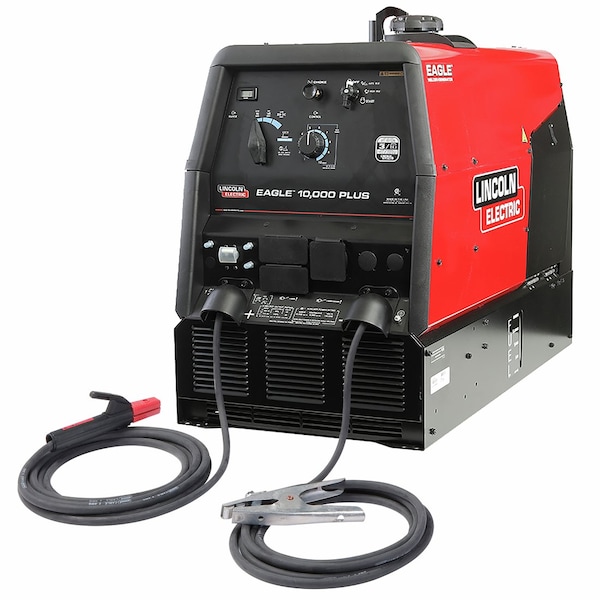

Engine-Driven Generator/Welder, Eagle 10,000 Plus Series, Electric Start, 10,500 W Peak

Mfr # K2343-4
Zoro # G309439942

6,904.99

Additional $275.00 delivery surcharge applies per item.

Key Features

Series

Eagle 10,000 Plus

Start Type

Electric

Continuous Auxiliary Power

9,000 W

Peak Auxiliary Power

10,500 W

Engine Brand

Kholer

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: K2343-4
Zoro #: G309439942
UPC #: 015082991306
Country of Origin: United States

Dimensions

Overall Height: 30 in
Overall Width: 21.5 in
Overall Depth: 42.25 in

Details

Item: Engine-Driven Generator/Welder
Series: Eagle 10,000 Plus
Start Type: Electric
Continuous Auxiliary Power: 9,000 W
Peak Auxiliary Power: 10,500 W
Engine Brand: Kholer
Phase: Single
Welding Processes: Stick Welding (SMAW), TIG Welding (GTAW)
Polarity: DC
Open Circuit Voltage: 80 V
Stick Welding Output @ Duty Cycle: 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
TIG Welding Output @ Duty Cycle: 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Horsepower: 22 hp
Generator Fuel Type: Gasoline
Weight: 539 lb
Engine Displacement: 45.8 cu in
Engine Model: Kohler CH730
TIG Welding Minimum Output Current: 40 A
Stick Welding Minimum Output Current: 40 A
Circuit Breaker: Yes
Model: K2343-4
Welding Mode: CC
Generator Outlets: 20 A 120V 5-20R (2), 50 A 120/240V 14-50R
Oil Capacity: 1 1/2 qt
Stick Welding Maximum Output Current: 225 A
TIG Welding Maximum Output Current: 225 A
Fuel Tank Capacity: 12 gal
Process: Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Maximum: 225 A
Amperage TIG - Minimum: 40 A
Amperage Stick - Minimum: 40 A
Amperage TIG - Maximum: 225 A
Rated Output @ Duty Cycle (TIG): 210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Welding Power Source Type: CC
Rated Output @ Duty Cycle (Stick): 210 A @ 25 V, 100%, 225 A @ 25 V, 40%

Description

Engine-Driven Generator/Welder, Generator Fuel Type Gasoline, Phase Single, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 225 A, Stick Welding Minimum Output Current 40 A, Stick Welding Output @ Duty Cycle 210 A @ 25 V, 100 Percent, 225 A @ 25 V, 40 Percent, TIG Welding Maximum Output Current 225 A, TIG Welding Minimum Output Current 40 A, TIG Welding Output @ Duty Cycle 210 A @ 25 V, 100 Percent, 225 A @ 25 V, 40 Percent, Welding Mode CC
