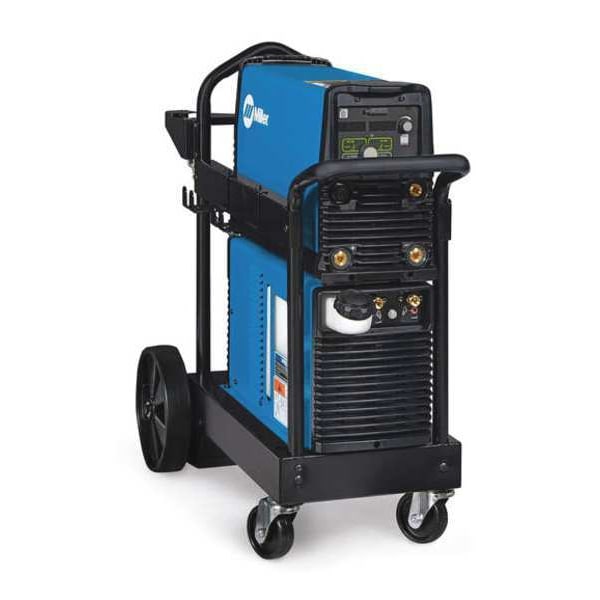

TIG Welder, Maxstar 280 Series, 208 to 575V AC, 208V AC, 575V AC, 280 Max. Output Amps

Mfr # 907538002
Zoro # G9124211

12,702.99

Additional $85.00 delivery surcharge applies per item.

Zoro's best price: not eligible for any other offers or promotions

Key Features

Welder Industrial Class

Medium

Welding Processes

Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)

Mild Steel - Material Thickness

0.004 in to 3/8 in

Input Voltage

208 to 575V AC, 208V AC, 575V AC

Rated Output

235A @ 19V

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 907538002
Zoro #: G9124211
UPC #: 715959578301
Country of Origin: United States

Dimensions

Mild Steel - Material Thickness: 0.004 in to 3/8 in
Overall Width: 8.63 in
Overall Height: 13.63 in
Overall Depth: 22.5 in
For Maximum Material Thickness: 3/8 in (Mild Steel)
For Minimum Material Thickness: 0.004 in (Mild Steel)
Power Cord Length: 8 ft
For Steel Thickness - Minimum: 1/250 in
For Stainless Steel Thickness - Maximum: 3/8 in

Details

Welder Industrial Class: Medium
Item: TIG Welder
Welding Processes: Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage: 208 to 575V AC, 208V AC, 575V AC
Rated Output: 235A @ 19V
Welder Max. Output Amps: 280
Welder Min. Output Amps: 1
Welder Duty Cycle: 60 %
Series: Maxstar 280
Welder Input Phase: 1 or 3
Welder Input Hz: 50/60
Features: Built-In Pulser, HF Arc Starting, Hot-Start(TM) for Stick, Inverter-Based DC Power Source, Memory Card Expandable, Portable, Pro-Set(TM), Programmable HF Start Parameters, Stick-Stuck Detect
Polarity: AC/DC
Power Source Weight: 47 lb
Welded Material: Steel
Includes: Coolmate 1.3, Small Runner Cart
Application: Aerospace, Boat / Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Input (Amps): 28/26/15/13/10
Phase: Single/Three
Standards: CE, CSA, ISO
TIG Welding Minimum Output Current: 1 A
TIG Welding Maximum Output Current: 280 A
Stick Welding Output @ Duty Cycle: 235 A @ 19 V, 60%
Amperage Range: 1 to 280 A
Input Frequency: 50/60 Hz
TIG Welding Output @ Duty Cycle: 235 A @ 19 V, 60%
Color: Blue/Black
Power Cord Included: Yes
Stick Welding Minimum Output Current: 1 A
For Material Type: Steel
Weight: 47 lb
Plug Type: Bare Leads
Stick Welding Maximum Output Current: 280 A
Open Circuit Voltage: 60V DC
Welding Mode: CC
Max. Input Current: 20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase)
Model: 907538002
Amperage TIG - Minimum: 1 A
Maximum Input Current: 20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase)
Process: Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum: 280 A
Rated Output @ Duty Cycle (Stick): 235 A @ 19 V, 60%
Amperage Stick - Minimum: 1 A
Welding Power Source Type: CC
Amperage Stick - Maximum: 280 A
Rated Output @ Duty Cycle (TIG): 235 A @ 19 V, 60%

Description

TIG Welder, For Material Type Steel, For Maximum Material Thickness 3/8 in (Mild Steel), For Minimum Material Thickness 0.004 in (Mild Steel), Input Frequency 50/60 Hz, Max. Input Current 20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Maxstar 280, Stick Welding Maximum Output Current 280 A, Stick Welding Minimum Output Current 1 A, Stick Welding Output @ Duty Cycle 235 A @ 19 V, 60 Percent, TIG Welding Maximum Output Current 280 A
