Shop MILWAUKEE TOOL

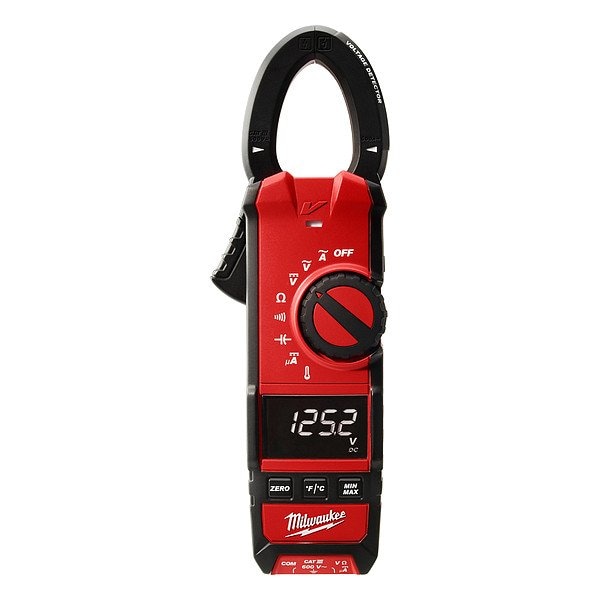

DigitalClampMeter, TRMS, 600A, 600VAC

  • Mfr # 2236-20NST

  • Zoro # G122433240

product price:
$
299.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Basic AC Voltage Accuracy
+/-3.5%
Basic DC Voltage Accuracy
+/-1.0%
Inrush Current Measurable
No
Maximum Capacitance Measurement
4,000 uF
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2236-20NST
Zoro #
G122433240
UPC #
45242341146
Country of Origin
United States

Dimensions

Overall Height
14.96 in
Battery Size
AA
Overall Width
2.09 in
Manufacturers Warranty Length
5 yr

Details

Basic AC Voltage Accuracy
+/-3.5%
Basic DC Voltage Accuracy
+/-1.0%
Inrush Current Measurable
No
Maximum Capacitance Measurement
4,000 uF
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Non-Contact Voltage Detector
Yes
Software Included
No
Auto Ranging
Yes
Maximum Resistance Measurement
6 kiloohm
AC Current Measurement Resolution
0.1 A
AC Voltage Measurement Resolution
0.1 V
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Non-Contact Voltage, Resistance, Temperature
Resistance Measurement Accuracy
+/-1.0%
Jaw Opening
1.3 in
Battery Access
Yes
Includes
Batteries, Dual Banana Thermocouple, Test Leads
Audible Continuity
Yes
Time of Day Clock
No
CAT Safety Rating
CAT III 600V
AC Response Calculation
TRMS
Thermal Imaging
No
Maximum DC Voltage Measurement
600 V
Jaw Style
Open
Auto Power Off
Yes
Bar Graph Included
No
Includes Auto Sensing
No Auto Sensing Included
Minimum Storage Temperature
-40 Degrees F
Removable Screen
No
Display Type
Backlit LCD
Frequency Measurement Resolution
0 Hz
Minimum Operating Temperature
-40 Degrees F
Basic AC Current Accuracy
+/-2.0%
Maximum AC Current Measurement
600 A
Standards
UL
Current Units
A
Special Features
Built-In LED Work Light
Current Leakage Testing
No
Maximum AC Voltage Measurement
600 V
Maximum DC Current Measurement
600 A
Diode Test
No
IP Rating
Not Rated
DC Voltage Measurement Resolution
0.01 V
Voltage Units
V
Maximum Storage Temperature
140 Degrees F
Multiple On-Screen Displays
No
Batteries Included
Yes
Capacitance Measurement Resolution
0 uF
Thermometer Type
Thermocouple
Calibration Certificate Included
NIST Traceable
Data Hold
Yes
Resistance Measurement Resolution
0 kiloohm
Capacitance Measurement Accuracy
+/-5%
Peak Hold
No
Item
Digital Clamp Meter

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Non-Contact Voltage, Resistance, Temperature, Intrinsically Safe Not Applicable, Data Logging Not Applicable, Thermal Imaging No
