  11. 2.0 W/B Dual Grid Plug HsgAssy22Ckt

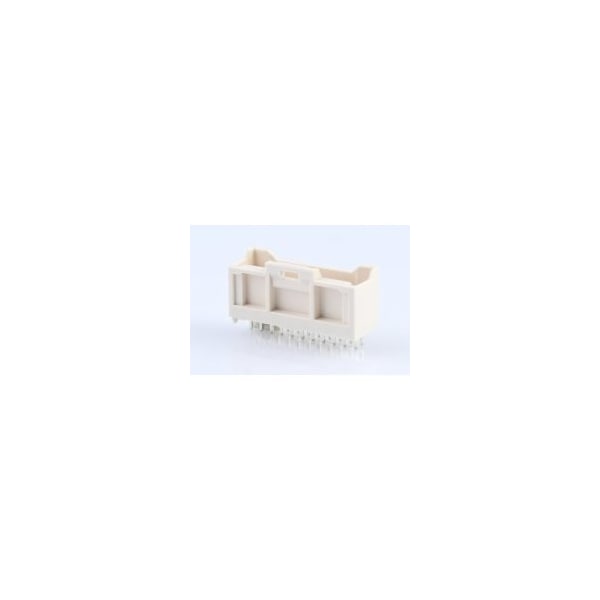

Molex 2.0 W/B Dual Grid Plug HsgAssy22Ckt 501645-2220 - main

2.0 W/B Dual Grid Plug HsgAssy22Ckt

  • Mfr # 501645-2220

  • Zoro # G4045033

product price: $1.15
/ea
Sold in multiples of 90 for $103.50

Key Features

Orientation
Vertical
Keying to Mating Part
Yes
Material - Metal
Brass
UL
E29179
Material - Resin
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
501645-2220
Zoro #
G4045033
UPC #
-
Country of Origin
Viet Nam

Dimensions

PC Tail Length
3.20mm
PCB Thickness - Recommended
1.20mm, 1.60mm

Details

Orientation
Vertical
Keying to Mating Part
Yes
Material - Metal
Brass
UL
E29179
Material - Resin
Nylon
Number of Rows
2
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
Durability (mating cycles max)
30
Circuits (Loaded)
22
PCB Locator
Yes
Color - Resin
Natural
Termination Interface: Style
Through Hole
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
Material - Plating Mating
Tin
CSA
LR19980
Circuits (maximum)
22
Pitch - Mating Interface
2.00mm
Voltage - Maximum
250V AC (RMS)/DC
Flammability
94V-0
Polarized to PCB
Yes
Current - Maximum per Contact
2.0A
