  11. CGrid RA Shrd Hdr wPg 15SAu 20Ckt

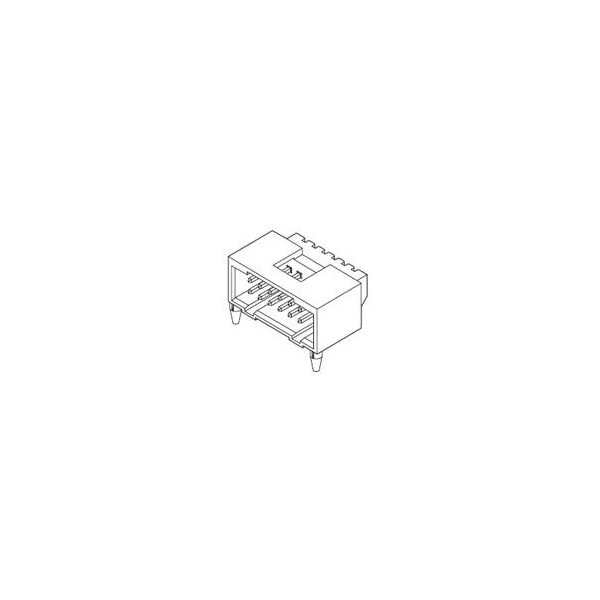

Molex CGrid RA Shrd Hdr wPg 15SAu 20Ckt 74164-0020 - main

CGrid RA Shrd Hdr wPg 15SAu 20Ckt

  • Mfr # 74164-0020

  • Zoro # G4042489

product price: $3.69
/ea
Sold in multiples of 25 for $92.25

Key Features

Application
Board-to-Board, Signal
Material - Plating Mating
Gold
Color - Resin
Black
Pitch - Termination Interface
2.54mm
Material - Metal
Phosphor Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
74164-0020
Zoro #
G4042489
UPC #
883906878504
Country of Origin
Malaysia

Details

Application
Board-to-Board, Signal
Material - Plating Mating
Gold
Color - Resin
Black
Pitch - Termination Interface
2.54mm
Material - Metal
Phosphor Bronze
Pitch - Mating Interface
2.54mm
Series
74164
Circuits (maximum)
20
Max. Cycles at Max. Process Temperature
1
Product Name
C-Grid
Circuits (Loaded)
20
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Termination Interface: Style
Through Hole
UL
E29179
Duration at Max. Process Temperature (seconds)
5
Durability (mating cycles max)
50
Material - Resin
High Performance Thermoplastic
Number of Rows
2
Lock to Mating Part
Yes
Plating min - Mating
0.381µm
Material - Plating Termination
Tin
Orientation
Right Angle
Flammability
94V-0
Process Temperature max. C
260
Voltage - Maximum
250V
Current - Maximum per Contact
2.5A
