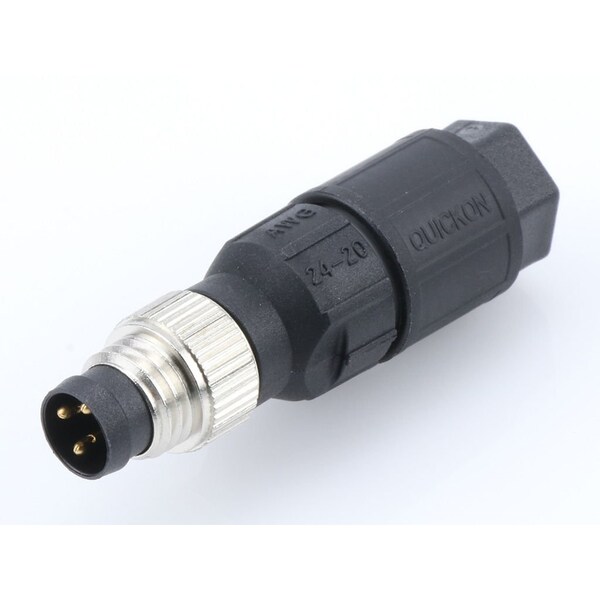

FA M8 3P AC MA STR IDC UNSH 025-05mm
Mfr # 1200910027
Zoro # G2086661
product price:Â $44.75
/ea
Sold in multiples of 2 for $89.50
Key Features
Poles
3
Voltage - Maximum
60V
Current - Maximum per Contact
3.0A
Wire Size AWG
20-24
Coupling Type
External Thread
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1200910027
- Zoro #
- G2086661
- UPC #
- -
- Country of Origin
- Poland
Dimensions
- Wire Size AWG
- 20-24
- Cable Diameter
- 2.50-5.20mm (.098-.205")
Details
- Poles
- 3
- Voltage - Maximum
- 60V
- Current - Maximum per Contact
- 3.0A
- Coupling Type
- External Thread
- Gender
- Male
- Orientation
- Straight
- Keyway
- None
- Material - Plating Mating
- Gold
- Temperature Range - Operating
- -25°C to +80°C
- Material - Connector Body
- PA
- Material - Coupling Nut
- Zinc Die-Cast, Nickel-Plated
- Material - Contact
- Copper Alloy
- Series
- 120091
- Diagnostics / LEDs
- No
- Type
- Field Attachable Connector
- Product Name
- Nano-Change (M8)
- IP Rating
- IP67
- Approvals
- cCSAus certified
