  11. High Speed / Modular Connectors Impact Bp 5X16 Gr Sn Impact Bp 5X16 Gr Sn

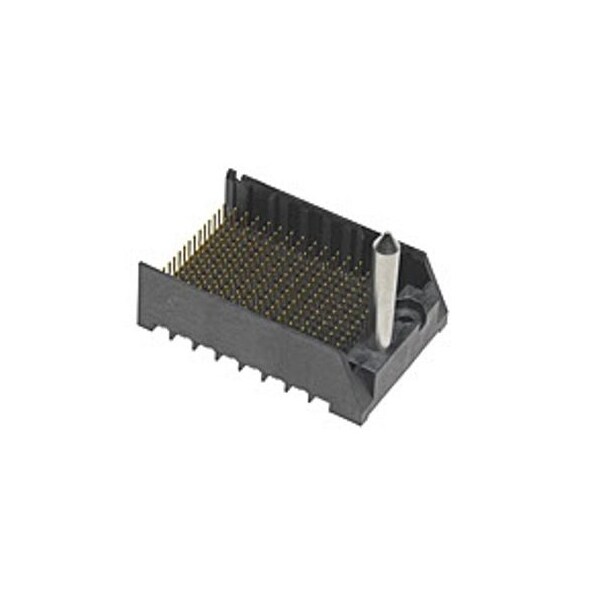

Molex High Speed / Modular Connectors Impact Bp 5X16 Gr Sn Impact Bp 5X16 Gr Sn 760555607 - main

High Speed / Modular Connectors Impact Bp 5X16 Gr Sn Impact Bp 5X16 Gr Sn

  • Mfr # 760555607

  • Zoro # G905926686

product price: $28.59
/ea
Sold in multiples of 3 for $85.77

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional, Mezzanine
Series
76055
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
760555607
Zoro #
G905926686
UPC #
-
Country of Origin
Singapore

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
1.40mm
PCB Thickness - Recommended
1.00mm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional, Mezzanine
Series
76055
Standards
UL E29179
Hole Center to Center
1.9 mm
Terminal Type
Through Hole - Compliant Pin
Material
High Temperature Thermoplastic
Color
Black
Flammability Rating
UL 94V-0
Number of Rows
15
Number of Contacts
240
Current Rating
0.75 A
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Material - Plating Mating
Gold
Impedance
100Ω
Guide to Mating Part
Yes
Material - Plating Termination
Tin
PCB Retention
Yes
Durability (mating cycles max)
200
Shielded
No
Number of Pairs
5
Flammability
94V-0
Circuits (Loaded)
240
Pitch - Mating Interface
1.90mm
Stackable
No
Current - Maximum per Contact
0.75A
Voltage - Maximum
30V AC (RMS)/DC
Plating min - Mating
0.762µm
First Mate / Last Break
No
Keying to Mating Part
None
Component Type
PCB Header
Material - Resin
High Temperature Thermoplastic
Polarized to PCB
Yes
Number of Columns
16
Data Rate
25.0 Gbps
Temperature Range - Operating
-55° to +85°C
PCB Locator
No
Material - Metal
High Performance Alloy (HPA)
Product Name
Impact
UL
E29179
Orientation
Vertical
