  11. MC 3P FP 3 90D 16/3 PVC

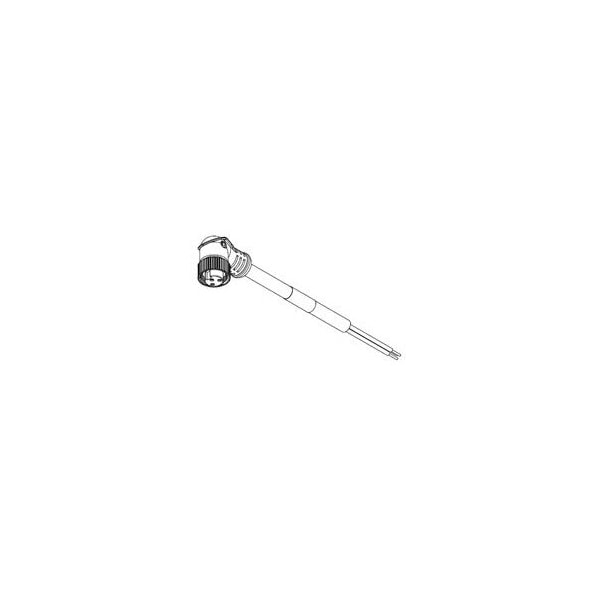

Molex MC 3P FP 3 90D 16/3 PVC 1300060422 - main

MC 3P FP 3 90D 16/3 PVC

  • Mfr # 1300060422

  • Zoro # G2082890

original price: $43.29
10% off
new price: $38.95
/ea
Sold in multiples of 3 for $116.85

Key Features

Poles
3
Wire/Cable Type
STOOW
Cable Diameter
10.41mm (.410")
Wire Size AWG
16
Current - Maximum per Contact
13.0A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1300060422
Zoro #
G2082890
UPC #
78678843042
Country of Origin
Mexico

Dimensions

Cable Diameter
10.41mm (.410")
Wire Size AWG
16
Cable Length
0.91m (3.0')

Details

Poles
3
Wire/Cable Type
STOOW
Current - Maximum per Contact
13.0A
Material - Cable Jacket
PVC
Gender
Female-Pigtail
Temperature Range - Operating
-20°C to +105°C
CSA
LR6837
Color - Cable Jacket
Yellow
Material - Connector Body
PVC
Voltage - Maximum
600V
UL
E152210
Coupling Style
Threaded
Orientation
90° to Pigtail
Keyway
Single
Material - Plating Mating
Gold
Material - Coupling Nut
Black Epoxy Coated Zinc
LED Indicator
No
Product Name
Mini-Change
Series
130006
Connector End B
Pigtail
IP Rating
IP67
Connector End A
Mini-Change
Material - Contact
Copper Alloy
Type
Single Ended

Description
