Shop MOLEX

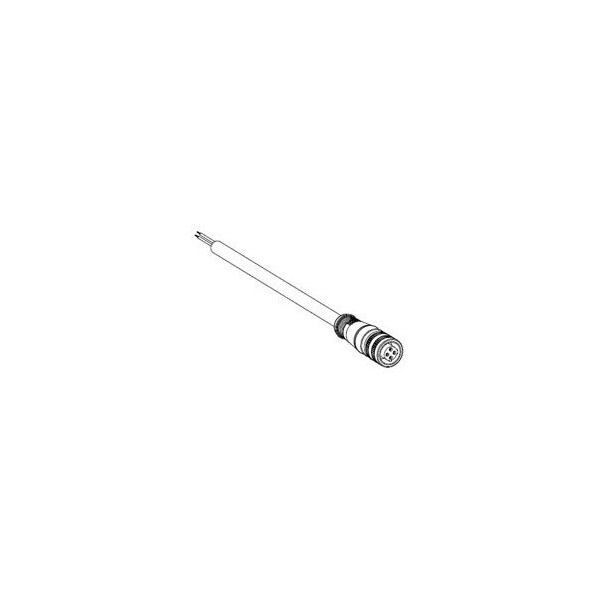

MIC 4P FP 20FT. No 22/4 AUTOMOTI

  • Mfr # 1200720364

  • Zoro # G2757009

product price:
$
128.99
/ea
Free Shipping & Returns

Key Features

Protocol
PROFIBUS
UL
E152210
Coupling Style
Threaded
Keyway
Dual
Material - O-Ring
Nitrile Rubber
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200720364
Zoro #
G2757009
UPC #
78678875928
Country of Origin
United States

Dimensions

Cable Diameter
5.08mm (.200")
Cable Length
6.10m (20.0')
Wire Size (AWG)
22

Details

Protocol
PROFIBUS
UL
E152210
Coupling Style
Threaded
Keyway
Dual
Material - O-Ring
Nitrile Rubber
Gender
Female-Pigtail
LED Indicator
No
IP Rating
IP67
Material - Cable Jacket
PVC
Connector End A
Micro-Change (1/2" - 20 UNF)
Material - Connector Body
PVC
Current - Maximum per Contact
4.0A
Material - Contact
Copper Alloy
Wire/Cable Type
UL 2661
Connector End B
Pigtail
Temperature Range - Operating
-20° to +105°C
Series
120072
Material - Coupling Nut
Black Epoxy Coated Zinc
Voltage - Maximum
250V AC/DC
Orientation
Straight to Pigtail
CSA
LR6837
Poles
4
Color - Cable Jacket
Yellow
Type
Single Ended
Product Name
Micro-Change (1/2" - 20 UNF)
Material - Plating Mating
Gold
