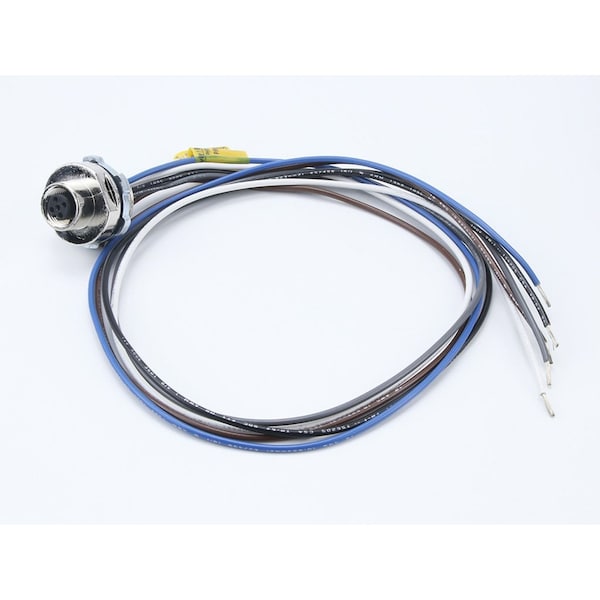

MIC 5P F/FR .5M 1/2NPT No 18 PVC
Mfr # 1200700419
Zoro # G2766048
product price: $53.15
/eaSold in multiples of 2 for $106.30
Key Features
NEMA Rating
NEMA 6
Length
0.50m
Panel Mount
Front
Series
120070
Type
Single Ended (pigtail)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1200700419
Zoro #
G2766048
UPC #
78172513382
Country of Origin
United States
Dimensions
Length
0.50m
Mounting Thread Size
1/2" - 14 NPT
Wire Size (AWG)
18
Details
NEMA Rating
NEMA 6
Panel Mount
Front
Series
120070
Type
Single Ended (pigtail)
Voltage - Maximum
250V AC/DC
Keyway
Single
Material - Component
Nickel-plated Zinc Die-Cast
Temperature Range - Operating
-20° to +105°C
Gender
Female
Poles
5
IP Rating
IP67
Current - Maximum per Contact
4.0A
Coupling Type
Internal Thread
Orientation
Straight
Wire/Cable Type
UL 1569
Product Name
Micro-Change (M12)
Description
