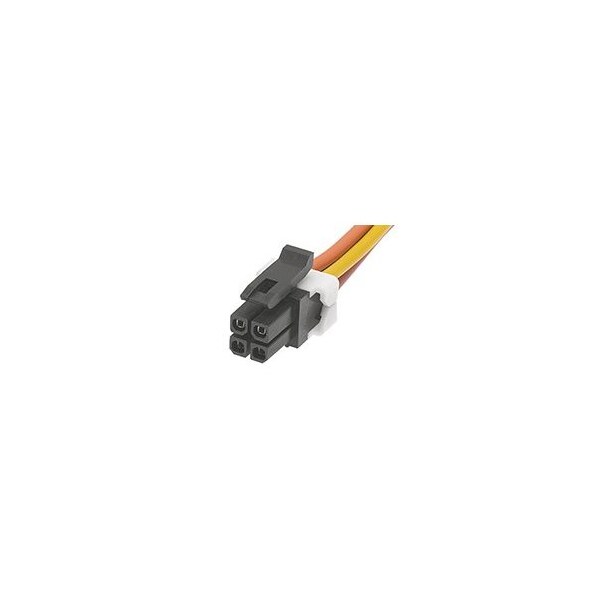

Microfit 4 Circuit 300Mm Cable Assembly

  • Mfr # 451320403

  • Zoro # G005926128


product price: $3.79
/ea
Sold in multiples of 25 for $94.75

Key Features

Cable Length
300.00mm
Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Series
45132
Wire Insulation Diameter
1.76mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
451320403
Zoro #
G005926128
UPC #
-
Country of Origin
China

Dimensions

Cable Length
300.00mm
Wire Insulation Diameter
1.76mm
Wire Size AWG
20

Details

Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Series
45132
Color - Resin
Black
Current - Maximum per Contact
5.0A
Material - Plating Termination
Tin
Circuits (Loaded)
4
Number of Rows
2
Termination Interface: Style
Crimp or Compression
Material - Resin
Nylon
Pitch - Mating Interface
3.00mm
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin
Plating min - Termination
1.016µm
Wire/Cable Type
UL 1007
Voltage - Maximum
300V
Lock to Mating Part
Yes
Plating min - Mating
1.016µm
Gender
Female-Female
Assembly Configuration
Dual Ended Connectors
Product Name
Micro-Fit TPA
Connector to Connector
Micro-Fit TPA Both Ends
Single Ended
No
Overmolded
No
