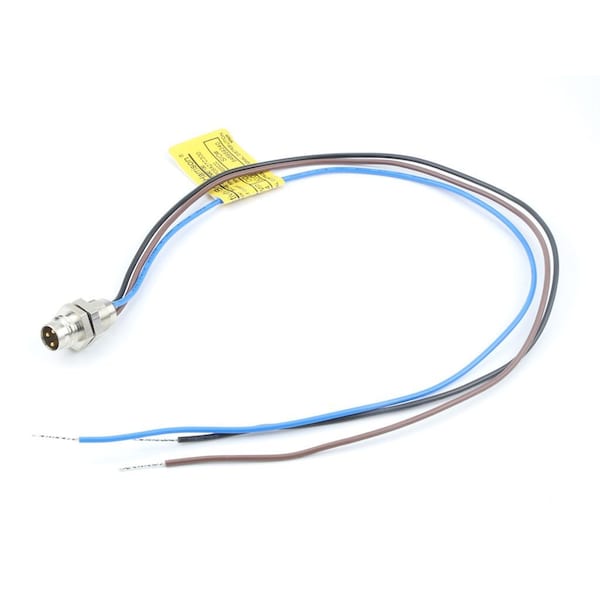

NC 3P MR 300MM M8X05
Mfr # 1200900020
Zoro # G2079138
original price: $17.15
5% off
new price: $16.29
/eaSold in multiples of 5 for $81.45
Key Features
NEMA Rating
NEMA 6
Length
0.30m
Orientation
Straight
Current - Maximum per Contact
4.0A
Panel Mount
Front
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1200900020
Zoro #
G2079138
UPC #
-
Country of Origin
Poland
Dimensions
Length
0.30m
Mounting Thread Size
M8 x 0.5
Wire Size AWG
24
Details
NEMA Rating
NEMA 6
Orientation
Straight
Current - Maximum per Contact
4.0A
Panel Mount
Front
Max. Cycles at Max. Process Temperature
3
Poles
3
Voltage - Maximum
60V AC / 75V DC
Process Temperature max. C
260
Gender
Male
Duration at Max. Process Temperature (seconds)
3
CSA
LR6837
Coupling Type
External Thread
Temperature Range - Operating
-20°C to +105°C
Keyway
None
Material - Component
Nickel-plated Brass
UL
E46237
Series
120090
IP Rating
IP67
Type
Single Ended (pigtail)
Wire/Cable Type
UL 1569
Product Name
Nano-Change (M8)
Description
