Shop MOLEX

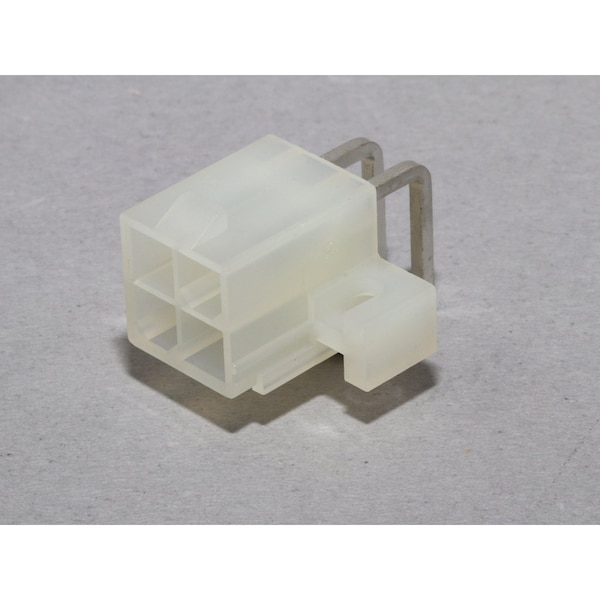

New Mini Fit RA Hdr Hsg Assy 4Ckt

  • Mfr # 39-29-1048

  • Zoro # G4035979

product price:
$
1.15
/ea
Sold in multiples of 150 for $172.50

Key Features

Material - Plating Mating
Matte Tin
Durability (mating cycles max)
30
Lock to Mating Part
Yes
Flammability
94V-2
PCB Thickness - Recommended
1.78mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-29-1048
Zoro #
G4035979
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

Material - Plating Mating
Matte Tin
Durability (mating cycles max)
30
Lock to Mating Part
Yes
Flammability
94V-2
Plating min - Termination
2.540µm
Duration at Max. Process Temperature (seconds)
5
PCB Locator
Yes
Temperature Range - Operating
-40° to +105°C
CSA
LR19980
Material - Resin
Nylon
Shrouded
Fully
Color - Resin
Natural
Process Temperature max. C
260
Pitch - Mating Interface
4.20mm
Termination Interface: Style
Through Hole
PCB Retention
Yes
Polarized to Mating Part
Yes
Orientation
Right Angle
Number of Rows
2
Current - Maximum per Contact
13.0A
Voltage - Maximum
600V
Max. Cycles at Max. Process Temperature
1
UL
E29179
Plating min - Mating
2.540µm
Material - Metal
Brass
Polarized to PCB
Yes
Circuits (maximum)
4
Circuits (Loaded)
4
Pitch - Termination Interface
4.20mm
Material - Plating Termination
Matte Tin
