  9. Rectangular Power Connector, 20 Contact(S), Male, Solder Terminal, Receptacle

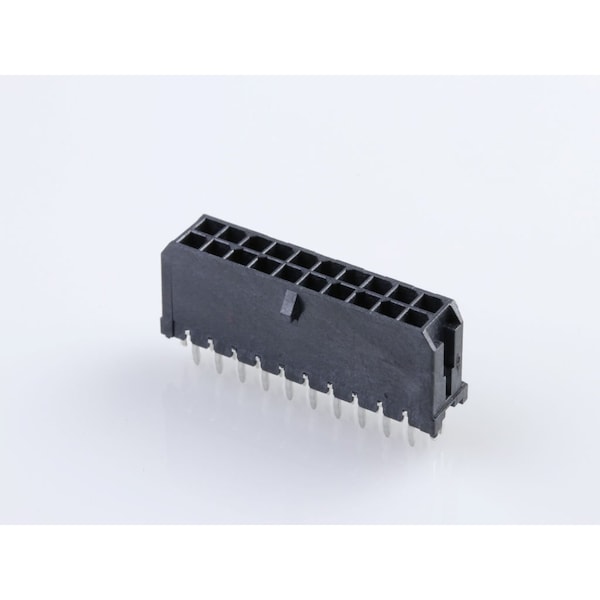

Molex Rectangular Power Connector, 20 Contact(S), Male, Solder Terminal, Receptacle 430452026 - main

Rectangular Power Connector, 20 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 430452026

  • Zoro # G505910764

product price: $5.95
/ea
Sold in multiples of 15 for $89.25

Key Features

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430452026
Zoro #
G505910764
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
Mated Height
17.64mm

Details

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
Terminal Type
Through Hole - Kinked Pin
Max. Temp.
260°C
Standards
CSA Certified; UL E29179
Hole Center to Center
3 mm
Material
High Temperature Thermoplastic
Features
Glow-Wire Capable; Surface Mount Compatible
Contact Finish
Gold Plated
Number of Contacts
20
Current Rating
8.5 A
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Temperature Range - Operating
-40° to +125°C
Glow-Wire Capable
Yes
UL
E29179
PCB Locator
Yes
CSA
LR19980
Max-Cycle
3
Durability (mating cycles max)
30
Material - Plating Mating
Gold
Max-Duration
30
Component Type
PCB Header
Orientation
Vertical
Plating min - Mating
0.762µm
Flammability
94V-0
Material - Plating Termination
Tin
Max-Temp
260
Material - Resin
High Temperature Thermoplastic
Material - Metal
Brass
Pitch - Mating Interface
3.00mm
Product Name
Micro-Fit 3.0
PCB Retention
Yes
Shrouded
Fully
Stackable
No
Circuits (Loaded)
20
Current - Maximum per Contact
8.5A
Polarized to PCB
Yes
Breakaway
No
