Shop All ECM Motors
Morrill

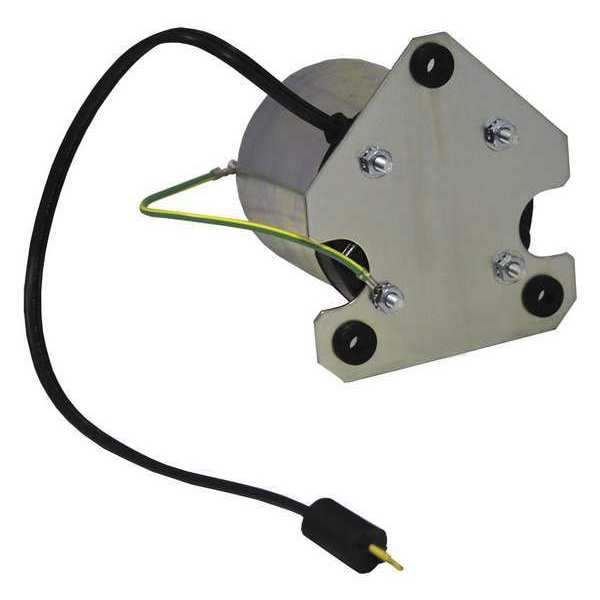

Brushless DC Motor, ECM, 1/15HP, 115V, Brckt

product price: $224.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Sub Application Refrigerator/Freezer
  • HP 1/15
  • Output Watts 50 W
  • RPM Range 1,501-1,600
  • Voltage 115V AC
See all product information

Product Information

  • Brand Morrill
  • MFR # 5104A
  • Zoro # G5246491
  • UPC #
    815585024637
  • Country of Origin Mexico
  • Category ECM Motors

Dimensions

Body Dia. 3 5/16 in
Bolt Circle Dia. 2 7/8 in
Shaft Dia. 5/16 in
Overall Length 5 1/8 in
Length Less Shaft 4 1/16 in
Shaft Length 1 in
Lead Length 15 in

Details

Motor Sub Application Refrigerator/Freezer
HP 1/15
Output Watts 50 W
RPM Range 1,501-1,600
Voltage 115V AC
Phase Single
Motor Shaft Rotation CCWLE
Motor Enclosure Design Totally Enclosed Air-Over
Nameplate RPM 1,550
No. of Speeds 1
Ins. Class B
Frame Material Steel
Ambient Temperature -40 Degrees to 25 Degrees C
Duty Continuous
Frame 3.3
Capacitor Required No
Item ECM Direct Drive Blower Motor
Mounting Pattern 2-4/5 in Diameter Bolt Circle
Standards CSA, UL
Motor Shaft Design Flat
Motor Mounting Position Vertical Shaft Down
Application Walk In Coolers, Freezers
Includes Special Mounting Bracket - Direct Replacement for Hussman/Krack Units
Motor Mounting Type Stud
Motor Design ECM
Max. Ambient Temp. 25 Degrees C
Motor Application HVAC/R
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps 1 A
Plug Type Round 2 Pin
Motor Frame Material Steel
Motor Bearings Ball
Hz 60/50 Hz
Motor Thermal Protection Electronic
HP @ 50Hz 1/15
Voltage @ 50Hz 115V AC
Weight 4 lb
Usable @ 208V No
Duty Cycle Continuous
Number of Shafts 1
RPM @ 50Hz 1,550 RPM
Full Load Amps @ 50Hz 1.10 A
Usable @ 200V No
Mounting Holes 4
Mounting Stud Pattern 2 4/5 in
Frequency 60/50 Hz
Number of Speeds 1
Mounting Stud

Description

ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Electronic, 60/50 Hz Hz, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 25 Degrees C, Duty Cycle Continuous, Lead Length 15 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Down, Number of Shafts 1
