Mosmatic

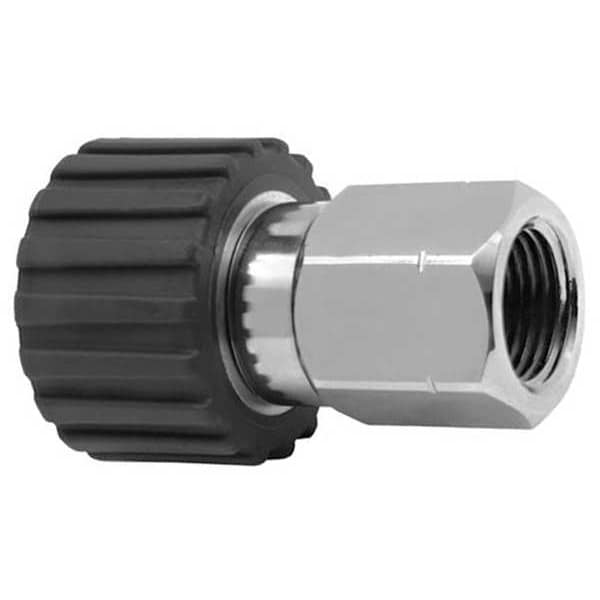

Rotary Union, Coupl, DKS, Metric x F x NPTF

product price: $48.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size Inlet M22x1.5-F - Outlet 3/8"NPTF
  • Rotation Manual Rotation
  • Flow Single
  • Max. Speed 30 rpm
  • Body Dia. 1.34"
See all product information

Product Information

Dimensions

Size Inlet M22x1.5-F - Outlet 3/8"NPTF
Body Dia. 1.34"
Pipe Size (Fittings) 3/8"
Pipe Size - Pipe Fitting 3/8"
Stationary Port Thread Size M22x1.5
Body Diameter 1.34 in
Shaft Thread Length 7/8 in
Rotating Shaft Thread Size 3/8 in
Overall Length 2.08 in

Details

Item Rotary Union
Rotation Manual Rotation
Flow Single
Max. Speed 30 rpm
Material of Construction Stainless steel
Connection M22 X 1-1/2" F X NPTF
Type DKS Swivel Coupling, Live
Max. Pressure 3600 psi
Max. Temp. 250 Degrees F
Standards ISO 9001
Pipe Fitting Material Stainless Steel
Internal Fitting Material Stainless Steel
Flow Direction Single-Flow
Stationary Port Connection Type FNPT
Fitting Material Brass
Bearing Type Thrust Ball Bearings
Internal Fitting Material Grade 304
Maximum Operating Temperature 250 Degrees F
Number of Passages 1
Maximum Speed 30 RPM
Thread Rotation Right Hand
Rotating Shaft Connection Type NPTF
Seal Material Nitrile Rubber
Fitting Material Finish Nickel-Plated

Description

Rotary Union, Fitting Material Brass, Internal Fitting Material Stainless Steel, Fitting Material Finish Nickel-Plated, Internal Fitting Material Grade 304, Fitting Type Straight, Flow Direction Single-Flow, Maximum Operating Temperature 250 Degrees F, Maximum Speed 30 RPM, Minimum Operating Temperature Not Applicable, Number of Passages 1, Overall Length 2.08 in, Pipe Size Not Applicable, Rotating Shaft Connection Type NPTF, Rotating Shaft Thread Size 3/8 in, Seal Material Nitrile Rubber
