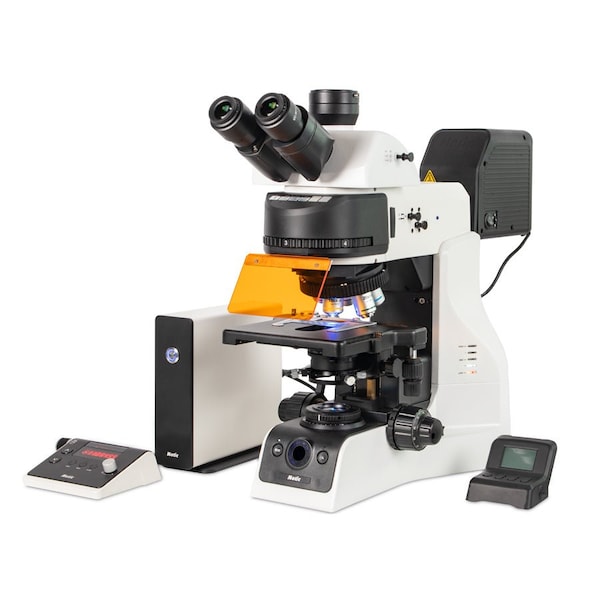

PA53 BIO FS6 EDF Trinocular Compound Upright Microscope with LUMOS FL LED

PA53 BIO FS6 - Fluorescence Research Microscope Product Description: The PA53 BIO FS6 is a high-end fluorescence microscope designed for cutting-edge life science research. With advanced optics, modular expandability, and powerful fluorescence capabilities, it provides exceptional image clarity for complex biological investigations. Features: - Integrated FS6 fluorescence system - High-sensitivity imaging performance - Advanced modular platform - Superior optical resolution - Multi-channel fluorescence capability Microscopy Applications: Perfect for fluorescence imaging, immunohistochemistry, and molecular biology. The PA53 BIO FS6 supports advanced research in cell biology, cancer studies, and drug development with precise visualization of cellular structures. PA53 FS6 EDF w/ LUMOS FL LED spec: - Scalable Infinity-Corrected Optical System (CCIS); - Trinocular Observation Tube (FN23), Siedentopf type(100:0,20:80,0:100) - Wide-Field (FN23) Eyepiece 10X/23mm, diopter adjustable; - Transmitted 100W Halogen illumination; - Reflected High-power LED fluorescence illumination; - Coded Quintuple (5) revolving nosepiece; - Reflected frame with motorized Z-axis; - Motorized Z-axis control box and control pad - Coded fluorescence turret for 6-position (5 filter sets and 1 BF) - Plan UC Fluor 4X/0.13,W.D=17.3mm,CG=0.17 - Plan UC Fluor 10X/0.3,W.D=11.7mm,CG=0.17 - Plan UC Fluor 20X/0.5,W.D=2.2mm,CG=0.17 - Plan UC Fluor 40X/0.75,W.D=0.7mm,CG=0.17 - Plan UC Fluor 100X/1.3 oil, W.D=0.1mm,CG=0.17 - AT-DAPI/Hoechst/AlexaFluor 350 SET - AT-EGFP/FITC/Cy2/AlexaFluor 48 SET - AT-TRITC/Cy3/TagRFP/AlexaFluor 546 SET - Two (2) empty filter cube sets - Rackless stage, size 220 (W) x 170 (L) mm, stroke 80(X) x 55(Y)mm - Kohler Collector, N.A 0.9/1.25 Abbe condenser with PH/DF slider slot - Integrated power supply for 12V/100W light adjustment, voltage indicator, IL and ECO function, Allen keys
