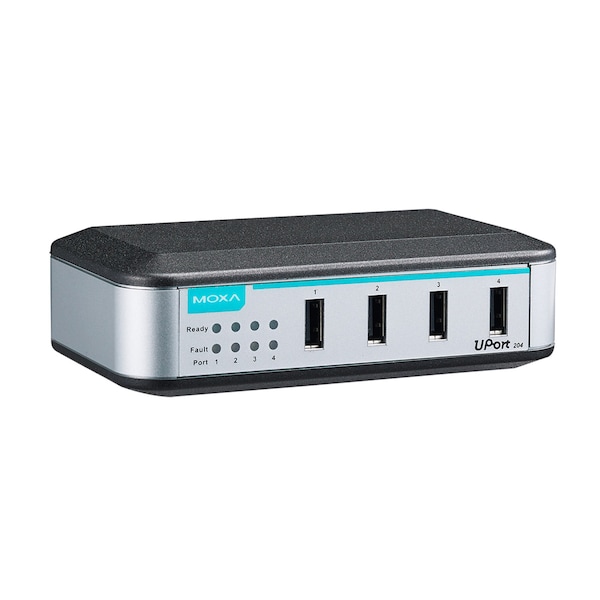

4Port Entry-Level Usb Hub, W/ Adapter

Name: 4Port Entry-Level Usb Hub, W/ Adapter
Brand: Moxa
SKU: G4570818
Price: 274.99 USD
Availability: InStock

274.99

/ea

Free Shipping & Returns

Input Voltage

12 to 40 VDC external power

Time

UPort 204: 1,577,573 hrs; UPort 207: 1,059,201 hrs

Power Consumption

UPort 204: 1210 mA @ 12 VDC, 610 mA @ 24 VDC, 430 mA @ 36 VDC; UPort 207: 2170 mA @ 12 VDC, 1070 mA @ 24 VDC, 730 mA @ 36 VDC

Ambient Relative Humidity

5 to 95% (non-condensing)

Housing

Polycarbonate (PC)

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: UPort 204
Zoro #: G4570818
UPC #: -
Country of Origin: Taiwan, Province of China
Input Voltage: 12 to 40 VDC external power
Time: UPort 204: 1,577,573 hrs; UPort 207: 1,059,201 hrs
Power Consumption: UPort 204: 1210 mA @ 12 VDC, 610 mA @ 24 VDC, 430 mA @ 36 VDC; UPort 207: 2170 mA @ 12 VDC, 1070 mA @ 24 VDC, 730 mA @ 36 VDC
Ambient Relative Humidity: 5 to 95% (non-condensing)
Housing: Polycarbonate (PC)
Speed: 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Safety: UL 508, LVD
EMC: CE, FCC
Supply Current: 500 mA max. per channel
Altitude: Up to 2000 m
Downstream: UPort 204: 4 USB ports, Type A connectors; UPort 207: 7 USB ports, Type A connectors
Upstream: 1 USB port (Type B connector)
Storage temperature: -20 to 75°C (-4 to 167°F)
Database: Telcordia (Bellcore), GB
Compliance: USB 1.1/2.0 compliant
Operating temperature: 0 to 60°C (32 to 140°F)
EMI: EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A
