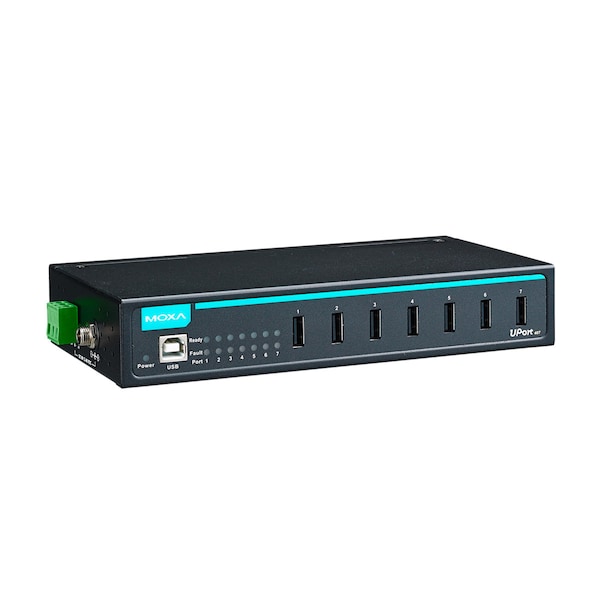

7Port Indust.-Grade Usb Hub, W/Out Adapter, Wide Temperature
Mfr # UPort 407-T w/o Adapter
Zoro # G4574494
product price:Â $593.99
/ea
Free Shipping & Returns
Key Features
Housing
Aluminum
EMC
CE, FCC
Safety
UL 508, LVD
Time
UPort 404: 1,490,340 hrs; UPort 407: 1,111,361 hrs
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UPort 407-T w/o Adapter
- Zoro #
- G4574494
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Dimensions
- UPort 404: 80 x 35 x 130 mm (3.15 x 1.38 x 5.12 in); UPort 407: 100 x 35 x 192 mm (3.94 x 1.38 x 7.55 in)
Details
- Housing
- Aluminum
- EMC
- CE, FCC
- Safety
- UL 508, LVD
- Time
- UPort 404: 1,490,340 hrs; UPort 407: 1,111,361 hrs
- EMS
- EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
- Upstream
- 1 USB port, Type B connector
- Input Voltage
- 12 to 40 VDC external power
- EMI
- EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A
- Supply Current
- 500 mA max. per channel
- Compliance
- USB 1.1/2.0 compliant
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Downstream
- UPort 404: 4 USB ports, Type A connectors; UPort 407: 7 USB ports, Type A connectors
- Operating temperature
- Standard Models: 0 to 60°C (32 to 140°F); Wide Temperature Models: -40 to 85°C (-40 to 185°F)
- Power Consumption
- UPort 404: 1300 mA @ 12 VDC, 690 mA @ 24 VDC; 470 mA @ 36 VDC; UPort 407: 2300 mA @ 12 VDC, 1130 mA @ 24 VDC; 790 mA @ 36 VDC
- Database
- Telcordia (Bellcore), GB
- Speed
- 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
- Altitude
- Up to 2000 m
- Storage temperature
- Standard Models: -20 to 75°C (-4 to 167°F); Wide Temperature Models: -40 to 85°C (-40 to 185°F)
Description
7 Port industrial-grade USB Hub, w/out adapter, Wide Temperature
