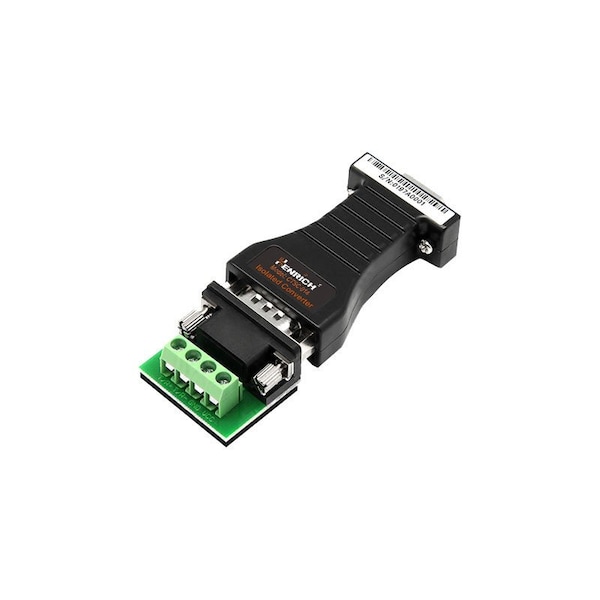

RS-232 to RS-485 Port-powered Opto-isolated Converter
Mfr # CTSC-014
Zoro # G723786110
product price:Â $24.09
/eaKey Features
Isolation
Isolation Voltage 2500Vrms 500DC Continuous
Working Temperature
-25°C to 70°C
Connector of RS-485
DB9 Male
Baud Rate
300bps-38,400bps
Working Mode
Asynchronous Half-duplex
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
CTSC-014
Zoro #
G723786110
UPC #
-
Country of Origin
China
Details
Isolation
Isolation Voltage 2500Vrms 500DC Continuous
Working Temperature
-25°C to 70°C
Connector of RS-485
DB9 Male
Baud Rate
300bps-38,400bps
Working Mode
Asynchronous Half-duplex
Relative Humidity
5% to 95 %
Connector of RS-232
DB9 Female
Serial Converter
RS-232 to RS-485
Standards
EIA/TIA RS-232C and RS-485 Standards
Transmission Distance
1,200m (RS-485 Side) 5m (RS-232 Side)
Description
RS-232 to RS-485 Converter with Optical Isolation, Protection: RS-232 +/-15KV ESD Protection, RS-485 Each Line 600W Lightning, Surge Protection, Isolation: Isolated Voltage 2,500Vrms 500VDC Non-stop, Baud Rate: 38,400bps to 300m, 9,600bps to 1.2Km, Operating Temperature: -25 DegC to 70 DegC
