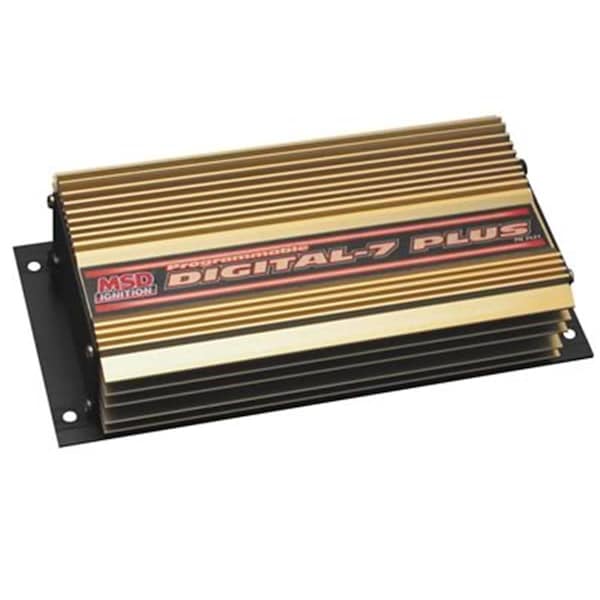

7531 7 Series Ignition Control Module

If you're a consummate engine tuner and know how to take advantage of minute changes in timing during a quarter mile pass, then the programmable digital 7 plus is the ignition for you! All of the standard programmable features such as individual cylinder management, step retards, Rev limits, shift points and more are included in the plus version but you also get more. Much, much more. A MAP sensor is required for the boost circuit. The ignition is supplied with wiring harnesses, mounting hardware, an RS232 computer harness and the Pro-Data plus software on a mini CD. Features Map A Complete Timing Curve For Each Gear. Updated X-Y Plots With Interpolation For Smooth Changes. Acquire 20 Seconds Of Run Data Including Two Seconds Prior To Launch. Vacuum Advance And Boost Retard Is Selectable Through A Map Sensor. There Is A Cam Sync Output For Fuel Controllers Or Data Acquisition. Automatic Magnetic Pickup Compensation For Crank Triggers Or Distributor Pick-Ups. Output To Activate A Device Through RPM, Time Or Pressure Inputs. Circuitry - Digital. Spark Output ( Millijoules) - 190 Millijoules. Maximum Operating Voltage - 18 Volt. Minimum Operating Voltage - 12 Volt. Output - Multiple Spark Discharge. Current Draw - 1.1 Ampere Per 1000 RPM. CD Voltage Output To Coil ( V) - 535 Volt. Timing Retard - Three Stage. REV Limiter - Yes. Data Acquisition - Yes.
