Shop MURRELEKTRONIK

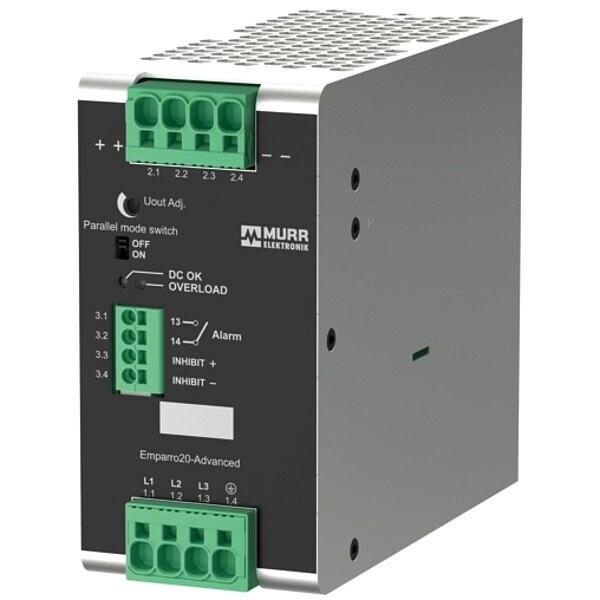

Dc Power Supply

  • Mfr # 9000-17337-2421110

  • Zoro # G922824392

product price:
$
581.99
/ea
Free Shipping & Returns

Key Features

Wire Size - Minimum
24 AWG
Hold Up Time - Minimum
24 msec
Start Up Time - Maximum
1 sec
Overall Depth
159.3 mm
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9000-17337-2421110
Zoro #
G922824392
UPC #
-
Country of Origin
Malaysia

Dimensions

Wire Size - Minimum
24 AWG
Overall Depth
159.3 mm
Wire Size - Maximum
8 AWG
Overall Height
129 mm
Overall Width
65 mm

Details

Hold Up Time - Minimum
24 msec
Start Up Time - Maximum
1 sec
Housing Material
Aluminum
Output Voltage - Nominal
72 V DC
Operating Temperature - Minimum
-25 Degrees C
Mounting
DIN Rail
Output Voltage - Maximum
85 V DC
IP Rating
IP20
Standards
CE, CE 2014/30/EU, cULus Listed, REACH, RoHS 25, SEMI F47, UKCA, UL, WEEE
Item
DC Power Supply
Series
Emparro20
Phase
Three
Input Frequency - Nominal
50/60 Hz
Wire Connection Type
Spring Clamp Terminals
Input Voltage
342 to 575V AC, 450.5 to 810V DC
Mean Time Between Failures (MTBF)
1,900,000 hr
Power Supply Style
Switching
Output Power - Rated
480 W
Output Noise - Maximum
150 mV
Output Voltage - Minimum
70 V DC
Current - Output
6.7 A
Special Features
Overload Protection, Overtemperature Protection, Short Circuit Protection
Status Indicator
Green LED
Operating Temperature - Maximum
70 Degrees C
Current - Inrush
18 A

Description

DC Power Supply, Input Voltage 342 to 575V AC, 450.5 to 810V DC, Mounting DIN Rail, Series Emparro20, IP Rating IP20, Status Indicator Green LED, Standards CE, CE 2014/30/EU, cULus Listed, REACH, RoHS 25, SEMI F47, UKCA, UL, WEEE
