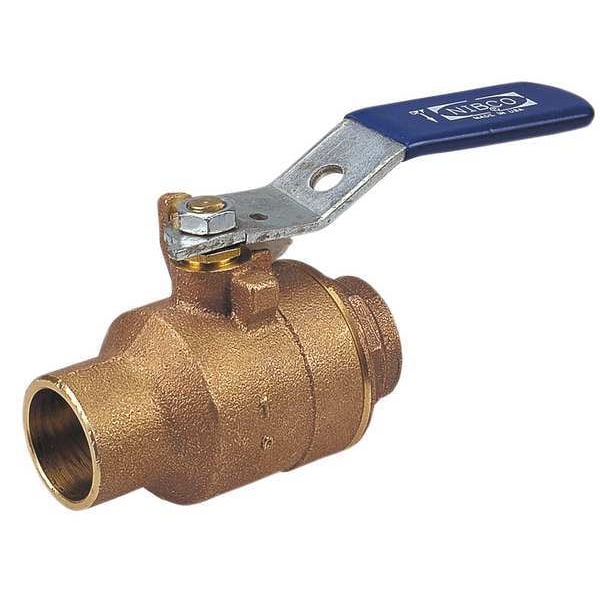

Nibco 3/4" Sweat Bronze Ball Valve Inline S58570 3/4 - main

3/4" Sweat Bronze Ball Valve Inline

  • Mfr # S58570 3/4

  • Zoro # G5273651

product price: $43.49
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S58570 3/4
Zoro #
G5273651
UPC #
039923677532
Country of Origin
United States

Dimensions

Pipe Size
3/4 in
Overall Length
3.25 in
Handle Height
2.25 in
Connection Size - Side 2
3/4 in
Connection Size - Side 1
3/4 in
Nominal Valve Size
3/4 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
Sweat x Sweat
Item
Ball Valve
Temp. Range
-20 Degrees to 400 Degrees F
Features
The NIBCO(R) bronze ball valve provides ease of operation with quarter-turn (90 Degrees ) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas.
Compliance
MSS SP-110
Max. Pressure
600 PSI CWP
Handle Material
Zinc Plated Steel
Stem Material
Silicon Bronze
Standards
MSS SP-110
Stem Type
Blowout Proof
Seat Material
RPTFE
Ball Valve Product Group
Manual
Body Material
Bronze
Handle Type
Lever
Seal Material
PTFE
Type
Two Piece
Color - Valve Handle
Blue
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 2
Female
3-A Standard Compliance
Not Rated
Maximum Pressure - Steam
150 PSI WSP
Connection Type - Side 1
Sweat
Connection Type - Side 2
Sweat
Connection Gender - Side 1
Female
Operating Temperature - Maximum
400 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle Type Lever, Connection Size - Side 1 3/4 in

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
