Shop All Copper Fittings
Nibco

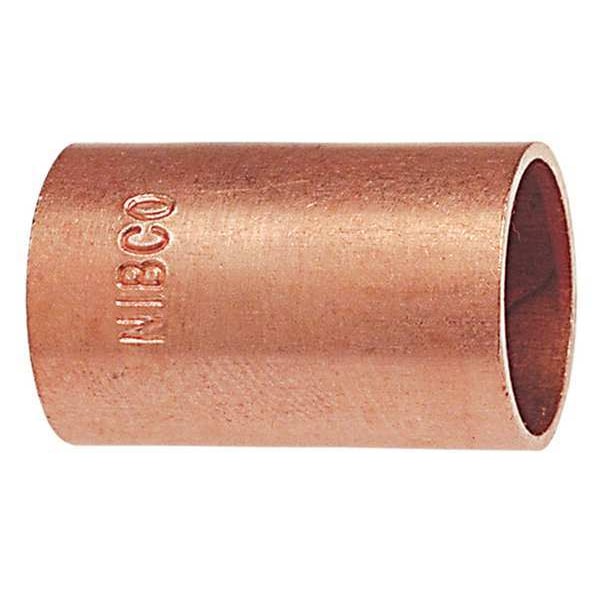

5/8" NOM C Copper Coupling

product price: $2.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Wrot Copper
  • Pipe Fitting Material Wrot Copper
  • Specific Fitting Shape Coupling
  • Fitting Connection Type C x C
  • Tube Size 5/8"
See all product information

Product Information

Dimensions

Tube Size 5/8"
Outside Dia. 3/4"
Fitting Side A Tube Outer Diameter 3/4 in
Fitting Side A Copper Tube Size 5/8 in
Overall Length 1 1/4 in
Fitting Side B Tube Outer Diameter 3/4 in
Fitting Side B Copper Tube Size 5/8 in

Details

Item Coupling
Tube Fitting Material Wrot Copper
Pipe Fitting Material Wrot Copper
Specific Fitting Shape Coupling
Fitting Connection Type C x C
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Coupling
Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; MSS SP-109 (5" To 8"); NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)
Pipe Fitting Connection Type C x C
Temp. Range -20 Degrees to 400 Degrees F
Specific Pipe Fitting Shape Coupling
Max. Pressure 505 psi@200 Degrees F
Resistance Properties Dezincification-Resistant
Fitting Side B Connection Type Cup
Includes Center Stop No Center Stop
Application Air, Gases, Potable Water
Maximum Operating Pressure 505 psi @ 200 Degrees F
Fitting Side A Connection Type Cup
Minimum Operating Temperature 20 Degrees F
Material Grade C12200
Fitting Material Wrot Copper
Maximum Operating Temperature 400 Degrees F

Description

Coupling, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 5/8 in, Fitting Side B Copper Tube Size 5/8 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 3/4 in, Fitting Side B Tube Outer Diameter 3/4 in, Maximum Operating Pressure 505 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Coupling, Includes Center Stop No Center Stop
