Shop All Copper Fittings
Nibco

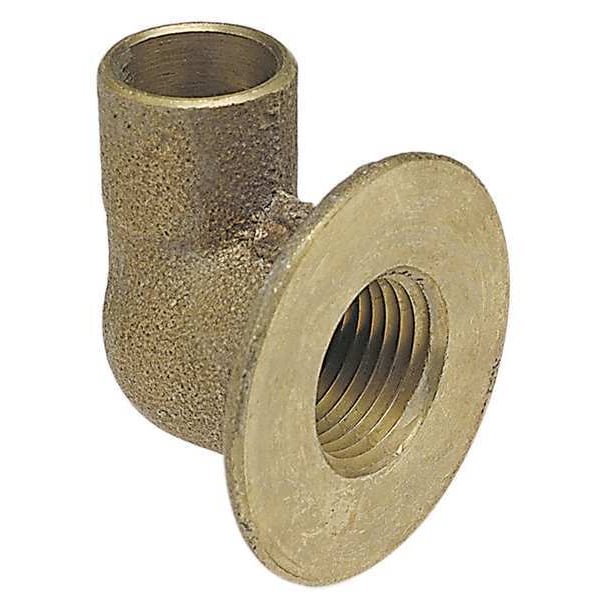

Flanged Sink Elbow, 90, Cast Bronze

product price: $10.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Cast Bronze
  • Pipe Fitting Material Cast Bronze
  • Specific Fitting Shape 90 Degree Elbow
  • Fitting Connection Type C x FNPT
  • Tube Size 1/2"
See all product information

Product Information

Dimensions

Tube Size 1/2"
Outside Dia. 5/8" x 1/2"
Pipe Size - Pipe Fitting 1/2"
Pipe Size (Fittings) 1/2"
Fitting Side A Tube Outer Diameter 5/8 in
Fitting Side B Pipe Size 1/2 in
Flange Outside Diameter 1.75 in
Fitting Side A Copper Tube Size 1/2 in

Details

Item 90 Degree Flanged Sink Elbow
Tube Fitting Material Cast Bronze
Pipe Fitting Material Cast Bronze
Specific Fitting Shape 90 Degree Elbow
Fitting Connection Type C x FNPT
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Elbow
Pipe Fitting Connection Type C x FNPT
Max. Pressure 577 psi@200 Degrees F
Specific Pipe Fitting Shape 90 Degrees Elbow
Standards ASME B16.18
Temp. Range -20 Degrees to 400 Degrees F
Fitting Side A Connection Type Cup
Resistance Properties Dezincification-Resistant
Maximum Operating Pressure 577 psi @ 200 Degrees F
Fitting Side B Connection Type FNPT
Maximum Operating Temperature 400 Degrees F
Application Air, Non-Potable Water
Fitting Material Cast Bronze
Material Grade C84400
Minimum Operating Temperature 20 Degrees F

Description

Flanged Sink Elbow, Application Air, Non-Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 1/2 in, Fitting Material Cast Bronze, Fitting Side B Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 5/8 in, Maximum Operating Pressure 577 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape 90 Degrees Sink Flange Elbow, Flange Outside Diameter 1.75 in

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
