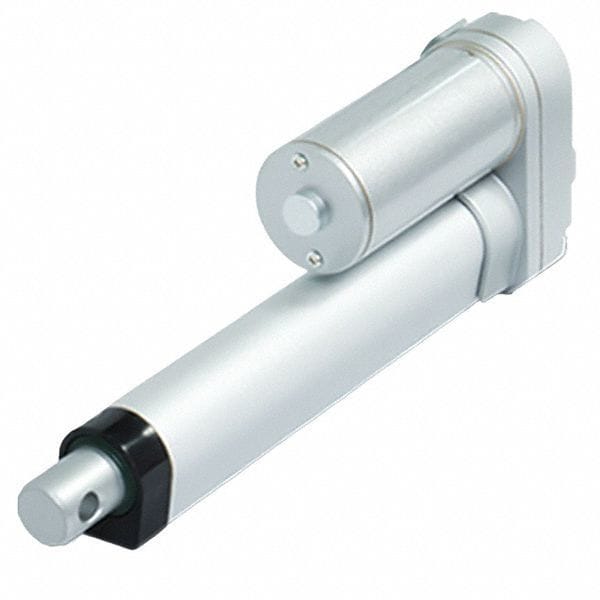

Actuator, 34 lbf, 12V DC

  • Mfr # ND3L-12-5-100P-IP65-A241

  • Zoro # G207868073

product price:
$
197.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Gear Ratio
5:1
Feedback Signal
Potentiometer
Voltage
12V DC
Speed @ Rated Load
36.5 mm/sec
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ND3L-12-5-100P-IP65-A241
Zoro #
G207868073
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Actuator
Housing Material
Aluminum
Gear Ratio
5:1
Feedback Signal
Potentiometer
Voltage
12V DC
Speed @ Rated Load
36.5 mm/sec
Full Load Amps
3.2 A
Duty Cycle
25 %
Max. Ambient Temp.
65 Degrees C/149 Degrees F
Enclosure Type
IP54
Standards
CE Listed, Electromagnetic Compatibility Directive 2014/30/Eu, Medical Device Directive 93/42/EEC (LD3M Only)
Limit Switch Type
Preset
Gear Case Type
Aluminum
Drive System Type
Gear
Rated Load
33 lb
Motor Type
Permanent Magnet
Speed at Full Load
0.21 in/sec
Gear Material
Aluminum
Series
ND3L
Limit Switch Setting
Fixed
Full Load Current
3.2 A
Operating Temperature - Minimum
-13 Degrees F
Enclosure IP Rating
IP65
Nut Material
Plastic
System of Measurement
Metric
Load Capacity
34 lbf
Operating Temperature - Maximum
149 Degrees F
Includes Capacitor
Capacitor Included
Speed at No Load
1.72 in/sec
Static Load Capacity
562 lbf
Dynamic Load Capacity
34 lbf

Description

Actuator, Motor Type Permanent Magnet, Voltage 12V DC, Nut Material Plastic, Load Capacity 34 lbf, Stroke Length 100 mm, Speed at Full Load 0.21 in/sec, Duty Cycle 25 Percent, Full Load Current 3.2 A, Retracted Length 239 mm, Gear Material Aluminum, Includes Capacitor Capacitor Included, Drive System Type Gear, Enclosure IP Rating IP65, Housing Material Aluminum, Limit Switch Setting Fixed, Operating Temperature - Maximum 149 Degrees F, Operating Temperature - Minimum -13 Degrees F
