Shop NTN

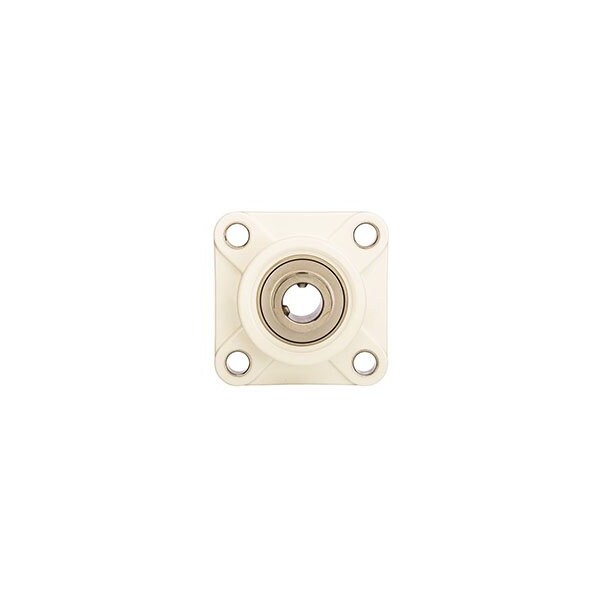

Flange Bearing, 4-Bolt, Ball, 1-1/4" Bore

  • Mfr # SUCFPL207-20
  • Zoro # G0791926
product price:
$
316.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCFPL207-20
Zoro #
G0791926
UPC #
-
Country of Origin
Multiple
System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
Thermoplastic
Bearing Insert Material
Stainless Steel
Dynamic Load Capacity
4,520 lbf
Bearing Lubrication
Relubricateable
Temp. Range
-4 Degrees to 250 Degrees F
Series
Sentinel Series
Finish
None
Static Load Capacity
15600 N
Includes
(4) Set Screws
Bearing Material Grade
440C
Rolling Element Rows
1
Maximum Temperature
212 Degrees F
Seal Type
Contact
Lubricant Material
H-1 Food Grade Solid Lubricant
Minimum Temperature
-4 Degrees F
Lubrication Openings
None
Closure
Double Sealed
Included Bearing
SUC207-20
Seal Material
Silicone
Bore Type
Cylindrical
Housing Material Finish
Unfinished
Static Radial Load Capacity
3,507 lbf
Resistance Properties
Corrosion-Resistant
Maximum Speed
3,700 RPM
Application
Agriculture, Automotive, Cosmetic/Pharmaceutical, Food and Beverage, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical
Expansion Type
Fixed
Includes Bearing Cap
Bearing Cap Not Included
For Environment
Food and Beverage, Washdown
Split Housing
Not Split
Features
Cap Ready
Load Direction
Thrust, Radial
Maximum Misalignment Angle
2 Degrees
Standards
IP69K
Number of Rows
1
Internal Clearance
CN

Description

Flange Mount Bearing, Back Side to Center Width 0.846 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 2 21/64 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Washdown, Housing Material Polymer, Housing Type Square, Included Bearing SUC207-20, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,700 RPM, Maximum Temperature 212 Degrees F
