Window Flow Sight with Ball Indicator - 3/4in. Female NPT, 3/4in. Female NPT, Viton Liquid Contact
Mfr # B4765-5V
Zoro # G016547602
product price: $71.99
/eaKey Features
Overall Length
3 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
B4765-5V
Zoro #
G016547602
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3 in
Description

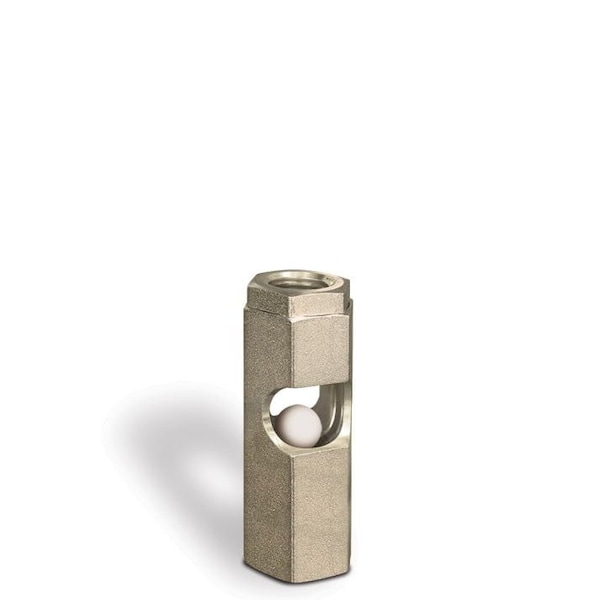

Item # B4765-5V, Window Flow Sight with Ball Indicator, 3/4 Female NPT Inlet and Outlet, Viton SealsWindow Flow Sights with Ball Indicator have an air-tight glass sight that allows visual observation of liquid flow, clarity, and condition. A nylon ball indicator shows the direction of fluid movement .The body is plated steel. The glass sight has a pressure tight, solid gasket design with Viton seals. This flow sight features a 5/8 diameter off-white nylon ball to visually indicate fluid movement. The flow of fluid will position the ball toward the outlet .The unit can be installed in any position horizontally, vertically, or at an angle . It tolerates temperatures up to 180° F. The maximum recommended pressure is 125 PSI. The total height is 5 19/32 and the hex size is 1 1/4. The visible area of the glass sight is 1 1/2 in length .NOTE: This image is a general illustration of a window flow sight with ball indicator.
