Fbr Optic Cbl, Diffuse, 0.005mm dia., 170mm
Mfr # E32-D11R
Zoro # G3274117
product price:Â
$
152.99
/ea
Free Shipping & Returns
Key Features
Cable Diameter
2.2 mm
Standards
IEC, UL Listed
Cable Length
2 m
Max. Sensing Distance
170 mm
Min. Object Size
0.005mm dia
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E32-D11R
- Zoro #
- G3274117
- UPC #
- -
- Country of Origin
- China
Dimensions
- Cable Diameter
- 2.2 mm
- Cable Length
- 2 m
- Min. Object Size
- 0.005mm dia
- Cable Dia.
- 2 mm
- Object Diameter - Minimum
- 0.005 mm
- Beam Diameter
- 5.2 mm
Details
- Item
- Fiber Optic Cable
- Standards
- IEC, UL Listed
- Max. Sensing Distance
- 170 mm
- Sensing Method
- Diffuse
- Tip Type
- M6 Screw
- Fiber Material Core
- Plastic
- Sheath
- Polyethylene
- Temp. Range
- -40 Degrees to 158 Degrees F
- Product Type
- Fiber Optic Cable
- Sensing Distance - Maximum
- 126 cm
- Cable Connection Type
- M6 Screw
- Sensing Surface Orientation
- Top View
- Operating Temperature - Maximum
- 158 Degrees F
- Sheath Material
- PVC
- Compatible Product Type
- Fiber Optic Sensors
- Operating Temperature - Minimum
- -40 Degrees F
- Compatible with Brand
- Omron
Description

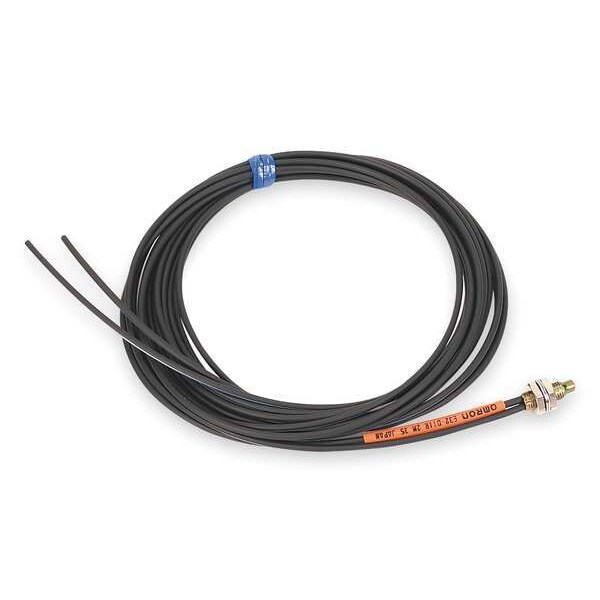

Fiber Optic Cable, Diffuse Sensing Method, Cable Length 2 m, Max. Sensing Distance 170 mm, Min. Object Size 0.005mm dia, Sheath Polyethylene, Fiber Material Core Plastic, Temp. Range -40 Degrees to 158 Degrees F, Cable Dia. 2 mm, Tip Type M6 Screw, Standards IEC, UL Listed
