  15. Heavy Duty Limit Switch, No Lever, Rotary, DPDT, 5A at 600V AC, Actuator Location: Side

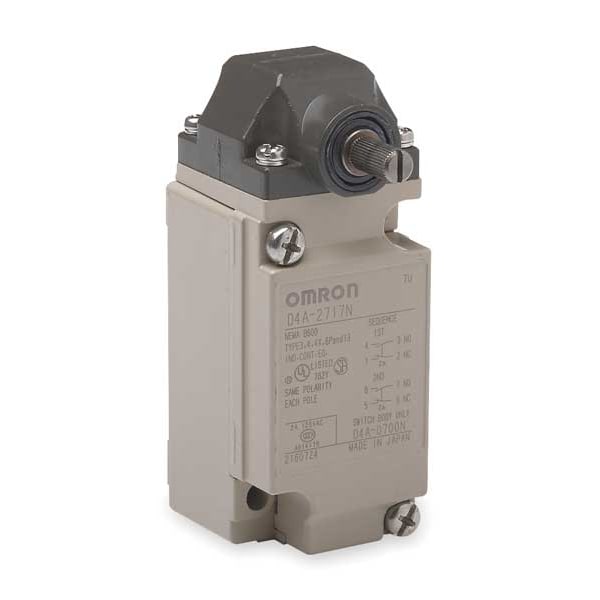

Omron Heavy Duty Limit Switch, No Lever, Rotary, DPDT, 5A at 600V AC, Actuator Location: Side D4A2717N - main

Heavy Duty Limit Switch, No Lever, Rotary, DPDT, 5A at 600V AC, Actuator Location: Side

  • Mfr # D4A2717N

  • Zoro # G2765971

product price: $177.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
DPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
5A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D4A2717N
Zoro #
G2765971
UPC #
-
Country of Origin
Japan

Dimensions

Body Depth - Limit Switch
1.73 in
Depth
2.32" to 2.53"
Body Height - Limit Switch
2.97 in
Body Width - Limit Switch
1.65 in
Height
4.11"
Width
1.65"
Roller Width
0.31 in
Body Depth
1.73 in
Mounting Hole Diameter
0.2 in
Roller Diameter
0.75 in
Manufacturer Warranty Length
1 yr
Body Width
1.65 in
Body Height
2.97 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
DPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
5A at 600V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Number of Poles
2
Boot Sealed Actuator - Limit Switch
No
NEMA Rating
12, 13, 3, 4, 4X, 6P
Body Material
Aluminum
Actuator Location
Side
Actuator Style
Rotary Head, No Lever
Contact Form - Limit Switch
DPDT
Boot Sealed Actuator (Limit Switch)
No
Body Style (Limit Switch)
Miniature
Contact Form
DPDT
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Location (Limit Switch)
Side
Voltage Rating
600VAC
Electrical Connection
Screw Terminals
Actuator Style (Limit Switch)
Rotary, No Lever
AC Contact Rating
5A at 600V
Basic Actuator Style (Limit Switch)
Rotary
DC Contact Rating
0.4 A @ 125 V (Inductive Load), 0.4 A @ 125 V (Resistive Load), 2 A @ 30 V (Indcutive Load), 3 A @ 30 V (Resistive Load), 4 A @ 14 V (Inductive Load), 5 A @ 14 V (Resistive Load)
Standards
CSA, UL
Operating Temp. Range
-40 Degrees to 212 Degrees F
Limit Switch Style
Heavy Duty Limit Switch
Amps
5
Travel
Total Travel 90 Degrees
Series
D4A
Operating Force
0.4 N-m
Stem Thread - Limit Switch
No Stem
Wiring Entry
1/2 in NPT
Movement
CCW, CW
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
IP Rating
67
Differential Travel
5 Degrees
Action
Momentary
Operating Torque - Maximum
3.54 in-lb
Boot Sealed Actuator
Boot Included
Total Travel
90 Degrees
Pretravel
17 Degrees
Number of Mounting Holes
2
Directional Movement
CCW/CW
Mounting Hole Horizontal Center to Center Distance
29 mm
Arm Adjustability
Adjustable
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4X, 5, 6P
Resistance Properties
Shock Resistant
Mounting Hole Vertical Center to Center Distance
59 mm
Overtravel
65 Degrees
Operating Temperature - Maximum
212 Degrees F
Roller Position
Top
Operating Temperature - Minimum
-40 Degrees F
Roller Adjustability
Fixed
Body Configuration
Plug-In
Plunger Adjustability
Fixed
Mounting Style
Surface
Includes Actuator
No Actuator Included

Description

Plug-In Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 5A @ 600V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches DPDT, Body Height - Limit Switch 2.97 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.73 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface
