  15. Heavy Duty Limit Switch, No Lever, Rotary, SPDT, 10A at 600V AC, Actuator Location: Side

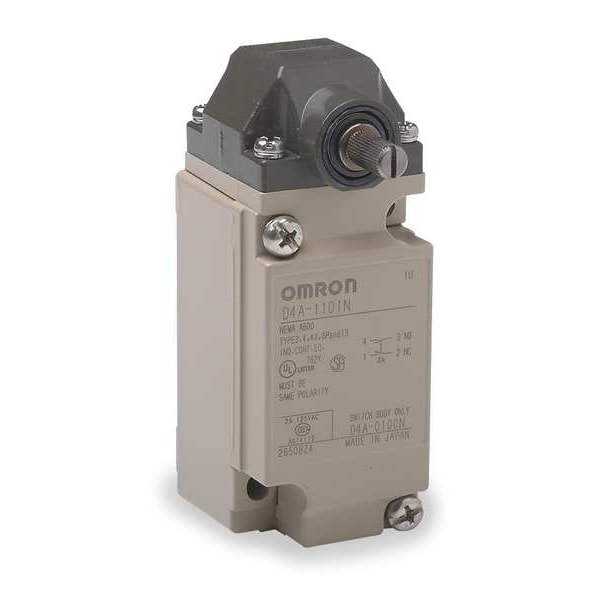

Omron Heavy Duty Limit Switch, No Lever, Rotary, SPDT, 10A at 600V AC, Actuator Location: Side D4A1101N - main

Heavy Duty Limit Switch, No Lever, Rotary, SPDT, 10A at 600V AC, Actuator Location: Side

  • Mfr # D4A1101N

  • Zoro # G0609621

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D4A1101N
Zoro #
G0609621
UPC #
-
Country of Origin
Japan

Dimensions

Width
1.65"
Body Width - Limit Switch
1.65 in
Body Height - Limit Switch
2.97 in
Height
4.11"
Depth
2.32" to 2.53"
Body Depth - Limit Switch
1.73 in
Roller Width
0.31 in
Roller Diameter
0.75 in
Body Depth
1.73 in
Body Width
1.65 in
Manufacturer Warranty Length
1 yr
Body Height
2.97 in
Mounting Hole Diameter
0.2 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Boot Sealed Actuator - Limit Switch
No
Body Material
Aluminum
NEMA Rating
12, 13, 3, 4, 4X, 6P
Operating Temp. Range
-40 Degrees to 212 Degrees F
Basic Actuator Style (Limit Switch)
Rotary
AC Contact Rating
10A at 600V
Mounting Hole - Limit Switch
(2) 0.20 in dia
Boot Sealed Actuator (Limit Switch)
No
Voltage Rating
600VAC
Amps
10
Actuator Style
Rotary Head, No Lever
Actuator Style (Limit Switch)
Rotary, No Lever
Movement
CCW, CW
Operating Force
0.4 N-m
Number of Poles
1
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Travel
Total Travel 85 Degrees
Wiring Entry
1/2 in NPT
Limit Switch Style
Heavy Duty Limit Switch
Actuator Location (Limit Switch)
Side
Standards
CSA, UL
Body Style (Limit Switch)
Miniature
Series
D4A
Contact Form
SPDT
Electrical Connection
Screw Terminals
DC Contact Rating
0.4 A @ 250 V, 0.8 A @ 125 V, 10 A @ 14 V, 10 A @ 8 V, 6 A @ 30 V
Contact Form - Limit Switch
SPDT
Stem Thread - Limit Switch
No Stem
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Actuator Location
Side
IP Rating
67
Differential Travel
4 Degrees
Products By Industry
Electrical
Pretravel
12 Degrees
Operating Torque - Maximum
3.54 in-lb
Plunger Adjustability
Fixed
Roller Position
Top
Number of Mounting Holes
2
Boot Sealed Actuator
Boot Included
Body Configuration
Plug-In
Total Travel
85 Degrees
Arm Adjustability
Adjustable
Includes Actuator
No Actuator Included
Operating Temperature - Maximum
212 Degrees F
Directional Movement
CCW/CW
Resistance Properties
Shock Resistant
Roller Adjustability
Fixed
Operating Temperature - Minimum
-40 Degrees F
Overtravel
70 Degrees
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4X, 5, 6P
Action
Momentary
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
59 mm
Mounting Hole Horizontal Center to Center Distance
29 mm

Description

Plug-In Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.97 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.73 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 3, 4, 4X, 6P, Mounting - Limit Switch Surface
