  15. Heavy Duty Limit Switch, Wobble Stick, SPDT, 10A at 600V AC, Actuator Location: Top

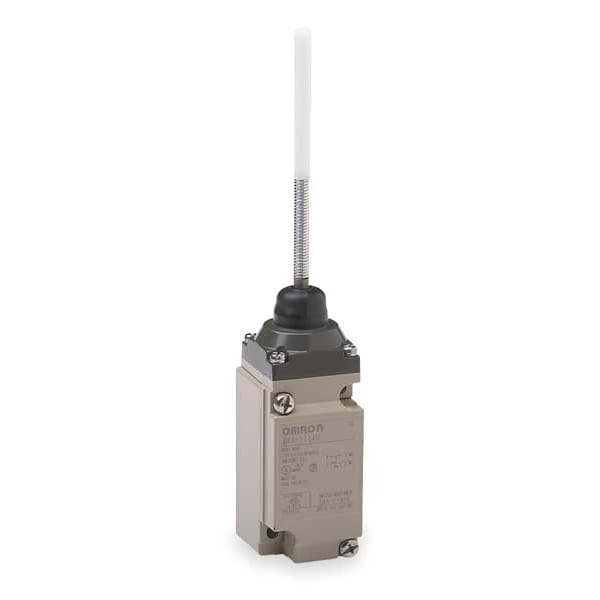

Omron Heavy Duty Limit Switch, Wobble Stick, SPDT, 10A at 600V AC, Actuator Location: Top D4A1114N - main

Heavy Duty Limit Switch, Wobble Stick, SPDT, 10A at 600V AC, Actuator Location: Top

  • Mfr # D4A1114N

  • Zoro # G2675233

product price: $147.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D4A1114N
Zoro #
G2675233
UPC #
-
Country of Origin
Japan

Dimensions

Height
8.68"
Body Height - Limit Switch
2.97 in
Body Width - Limit Switch
1.65 in
Width
1.65"
Actuator Length - Limit Switch
4.35 in
Actuator Length
4.35"
Depth
1.73"
Body Depth - Limit Switch
1.73 in
Arm Width
0.28 in
Roller Width
0.28 in
Body Depth
1.73 in
Manufacturer Warranty Length
1 yr
Body Width
1.65 in
Mounting Hole Diameter
0.2 in
Body Height
2.97 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
AC Contact Rating
10A at 600V
Actuator Style (Limit Switch)
Wobble Stick
Actuator Location (Limit Switch)
Top
Voltage Rating
600VAC
DC Contact Rating
0.4 A @ 250 V, 0.8 A @ 125 V, 10 A @ 14 V, 10 A @ 8 V, 6 A @ 30 V
Mounting Hole - Limit Switch
(2) 0.20 in dia
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Electrical Connection
Screw Terminals
Wiring Entry
1/2 in NPT
IP Rating
67
Operating Force
1.5 N-m
Stem Thread - Limit Switch
No Stem
Actuator Style
Wobble Stick, Coil Spring
Body Style (Limit Switch)
Miniature
Standards
CSA, UL
Contact Form - Limit Switch
SPDT
Boot Sealed Actuator - Limit Switch
No
Contact Form
SPDT
Number of Poles
1
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Body Material
Aluminum
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Actuator Location
Top
Operating Temp. Range
-4 Degrees to 212 Degrees F
Basic Actuator Style (Limit Switch)
Wobble Stick
Amps
10
Series
D4A
Boot Sealed Actuator (Limit Switch)
No
Movement
Top
NEMA Rating
12, 13, 3, 4, 4X, 6P
Limit Switch Style
Heavy Duty Limit Switch
Roller Material
Plastic
Roller Position
Top
Total Travel
5 Degrees
Operating Temperature - Maximum
212 Degrees F
Body Configuration
Plug-In
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4X, 5, 6P
Mounting Hole Horizontal Center to Center Distance
29 mm
Plunger Adjustability
Fixed
Directional Movement
CCW/CW
Mounting Hole Vertical Center to Center Distance
59 mm
Arm Adjustability
Fixed
Operating Torque - Maximum
13.28 in-lb
Operating Temperature - Minimum
-40 Degrees F
Pretravel
5 Degrees
Boot Sealed Actuator
Boot Included
Includes Actuator
Actuator Included
Number of Mounting Holes
2
Resistance Properties
Shock Resistant
Action
Momentary
Mounting Style
Surface

Description

Wobble Stick Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Actuator Length - Limit Switch 4.35 in, Body Height - Limit Switch 2.97 in, Body Width - Limit Switch 1.65 in, Body Depth - Limit Switch 1.73 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 3, 4, 4X, 6P
