  13. Limit Switch Head, Plunger, Top, 0.48 In

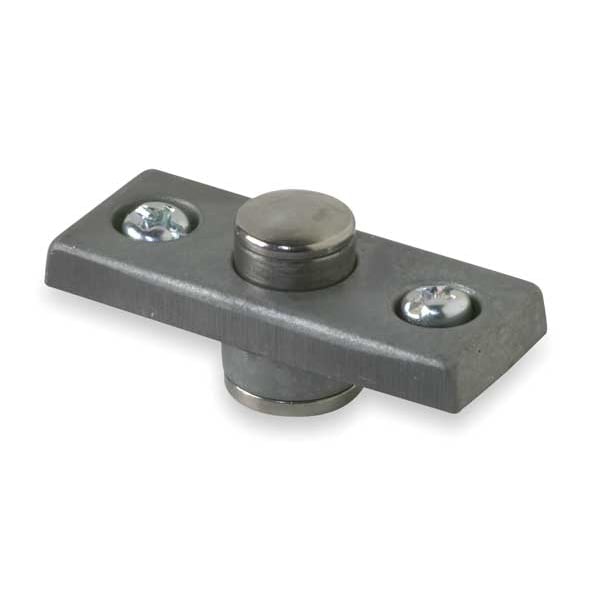

Omron Limit Switch Head, Plunger, Top, 0.48 In D4C0001 - main

Limit Switch Head, Plunger, Top, 0.48 In

  • Mfr # D4C0001

  • Zoro # G2027812

product price: $41.99
/ea

Key Features

For Use With
Mfr. No. D4C1601
Standards
CCC, CSA, EN, UL Listed
Movement
Top
NEMA Rating
1, 12, 13, 3, 3R, 4, 5, 6
Actuator Length
0.48 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D4C0001
Zoro #
G2027812
UPC #
-
Country of Origin
Japan

Dimensions

Actuator Length
0.48 in
Arm Width
0.39 in
Arm Length - Maximum
0.48 in

Details

Item
Limit Switch Head
For Use With
Mfr. No. D4C1601
Standards
CCC, CSA, EN, UL Listed
Movement
Top
NEMA Rating
1, 12, 13, 3, 3R, 4, 5, 6
Amps
Not Specified
Travel
Not Specified
Operating Force
11.77 N
Contact Form
Not Specified
Operating Temp.
-14 Degrees to 158 Degrees F
Voltage Rating
Not Specified
Actuator Location
Top
Description/Special Features
Not Specified
Actuator Style
Plunger
IP Rating
IP67
Features
Sealed Cable Entrance, Multiple Mounting Possible
Arm Material
Stainless Steel
Series
D4C
Compatible with Manufacturer Model Number
D4C1601
Differential Travel
0.01 in
Plunger Adjustability
Fixed
Overtravel
0.12 in
Directional Movement
Linear
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
158 Degrees F
Arm Adjustability
Fixed
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 5, 6
Compatible with Series
D4A
Pretravel
0.07 in
Operating Torque
52.04 in-lb
Compatible Manufacturer Part Number
D4C1601
Compatible Manufacturer Model Number
D4C1601
Compatible with Manufacturer Model No.
D4C1601
Compatible with Mfr. Model No.
D4C1601
For Use with Mfr Model Number
D4C1601
For Use With Mfr. Model Number
D4C1601
Compatible Pump Manufacturer Part Number
D4C1601
Compatible Mfr. Model Number
D4C1601

Description

Limit Switch Head, Actuator Style Plunger, Actuator Location Top, Actuator Length 0.48 in, Contact Form Not Specified, Amps Not Specified, Voltage Rating Not Specified, Travel Not Specified, Movement Top, Operating Force 11.77 N, Operating Temp. -14 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 3, 3R, 4, 5, 6, IP Rating IP67, Standards CCC, CSA, EN, UL Listed, For Use With Mfr. No. D4C1601
