Shop OMRON

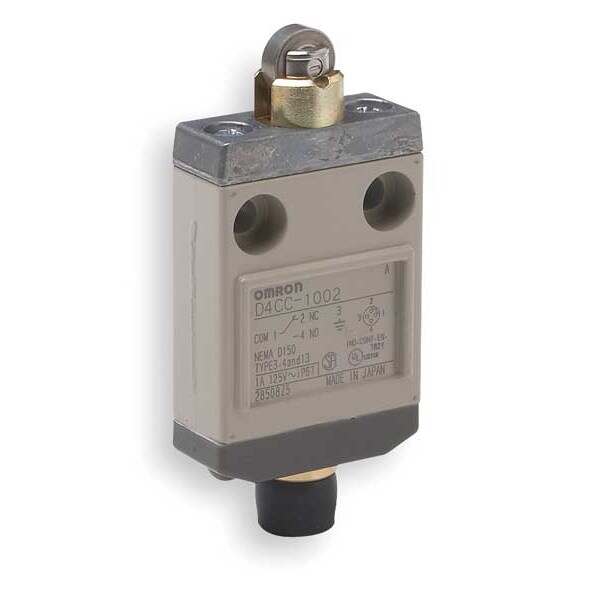

Limit Switch, Plunger, Roller, SPDT, 1A at 120V AC, Actuator Location: Top

  • Mfr # D4CC1002

  • Zoro # G0701206

product price:
$
117.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
1A at 120V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D4CC1002
Zoro #
G0701206
UPC #
-
Country of Origin
Japan

Dimensions

Width
1.57"
Body Depth - Limit Switch
0.63 in
Height
3.36"
Roller Dia.
0.69 in
Body Width - Limit Switch
1.33 in
Depth
0.63"
Roller Width
0.17 in
Body Height - Limit Switch
2.13 in
Manufacturer Warranty Length
1 yr
Body Depth
0.63 in
Body Height
2.13 in
Roller Diameter
0.69 in
Mounting Hole Diameter
0.2 in
Body Width
1.33 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
1A at 120V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Limit Switch Style
General Purpose Limit Switch
Voltage Rating
120VAC
Body Style (Limit Switch)
Miniature
AC Contact Rating
1 A @ 125 V
Operating Force
11.8 N-m
Electrical Connection
4-Pin M12 Male Connector
NEMA Rating
13, 3, 4
Contact Form - Limit Switch
SPDT
Travel
Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
Actuator Style
Roller Plunger
DC Contact Rating
Not Rated
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Style (Limit Switch)
Plunger, Roller
Roller Material
Stainless Steel
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Standards
CSA, UL Listed
Amps
1
Wiring Entry
Connector
Operating Temp. Range
-14 Degrees to 158 Degrees F
Mounting Hole Spacing - Limit Switch
0.98 in
Stem Thread - Limit Switch
No Stem
Actuator Location (Limit Switch)
Top
Body Material
Aluminum
Contact Form
SPDT
Movement
Top
Actuator Location
Top
IP Rating
IP67
Boot Sealed Actuator (Limit Switch)
No
Boot Sealed Actuator - Limit Switch
No
Number of Poles
1
Series
D4CC
Basic Actuator Style (Limit Switch)
Plunger
Differential Travel
0.01 in
Overtravel
0.12 in
Number of Mounting Holes
2
Roller Adjustability
Fixed
Body Configuration
Plug-In
Boot Sealed Actuator
No Boot Included
Plunger Adjustability
Fixed
Operating Temperature - Maximum
158 Degrees F
Directional Movement
Linear
Roller Position
Top
NEMA Enclosure Rating
13, 3, 4
Pretravel
0.07 in
Operating Force - Maximum
11.77 N
Mounting Hole Vertical Center to Center Distance
25 mm
Action
Momentary
Includes Actuator
Actuator Included
Operating Torque - Maximum
104.44 in-lb
Operating Torque - Minimum
2.92 in-lb
Mounting Hole Horizontal Center to Center Distance
25 mm
Mounting Style
Surface
Total Travel
0.19 in
Operating Temperature - Minimum
14 Degrees F

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 1A @ 120V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface, Electrical Connection 4-Pin M12 Male Connector
