  13. Snap Action Switch, Hinge, Lever Actuator, SPDT, 15 A at 480 V AC Contact Rating

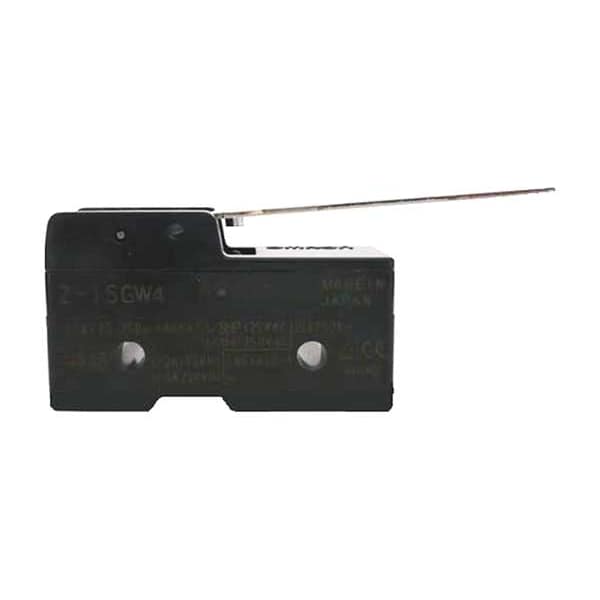

Omron Snap Action Switch, Hinge, Lever Actuator, SPDT, 15 A at 480 V AC Contact Rating Z-15GW4 - main

Snap Action Switch, Hinge, Lever Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15GW4

  • Zoro # G1168237

product price: $8.99
/ea
Sold in multiples of 2 for $17.98

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z-15GW4
Zoro #
G1168237
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
1.05"
Length
1.94"
Actuator Length
2.50"
Mounting Dimension
1.00" Centers
Depth
0.69"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Overall Width
2.94 in
Lever Actuator Length
2.5 in
Body Height
0.69 in
Body Depth
1.39 in
Body Width
2.94 in
Overall Depth
0.69 in
Overall Height
0.69 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Watertight - Snap Action Switch
No
Series
Z
Voltage Rating
125/250VAC
Max. Pretravel
0.394 in
Over Travel
0.221 in
Contact Form
1NO/1NC
Differential Travel
0.05 in
Housing Material
Phenolic
Terminal Type
Solder
Release Force
0.12 ozf
Operating Force
0.99 oz
Standards
CSA, UL Listed
Current Rating
15a
Type of Actuator
Hinge Lever
Electrical Connection - Snap Action Switch
Solder Lug
Operating Temp. Range
-13 Degrees to 176 Degrees F
AC Contact Rating
15 A @ 250 V
DC Contact Rating
15 A @ 14 V
Operating Force - Minimum
0.27 N
Center Mounting Hole Distance
1 in
Operating Force - Maximum
0.27 N
Roller Adjustability
Fixed
Differential Travel - Maximum
0.05 in
Operating Temperature - Minimum
-13 Degrees F
Body Material
Phenolic
Overtravel
0.22 in
Actuator Style
Hinge Lever
Electrical Connection
Solder
Operating Temperature - Maximum
176 Degrees F
Pretravel
0.22 in

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
