  13. Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

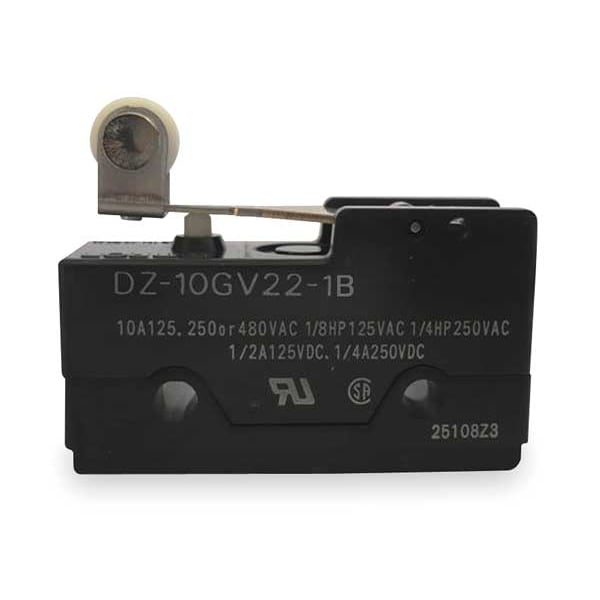

Omron Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GV22-1B - main

Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GV22-1B

  • Zoro # G0685282

product price: $37.89
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
1.94 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DZ-10GV22-1B
Zoro #
G0685282
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.94 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
1.10"
Mounting Dimension
1.00" Centers
Actuator Length
1.94"
Depth
0.69"
Length
1.94"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Hole Diameter
3/16 in
Lever Actuator Length
1.94 in
Roller Diameter
0.37 in
Body Height
0.69 in
Body Width
1.94 in
Overall Depth
1.6 in
Roller Width
0.16 in
Overall Width
1.94 in
Overall Height
0.69 in
Body Depth
1.6 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Differential Travel
0.0236 in
Operating Temp. Range
-25 Degrees to 80 Degrees C
Electrical Connection - Snap Action Switch
Screw
Voltage Rating
125VAC
Contact Form
3NO/3NC
Type of Actuator
Hinge Roller Lever
Release Force
1.47 ozf
Housing Material
Phenolic
Operating Force
15.2 oz
Current Rating
10A
Watertight - Snap Action Switch
No
Standards
CSA, RU
Terminal Type
Screw
Max. Pretravel
0.118 in
Series
DZ
Over Travel
0.005 in
AC Contact Rating
2 A @ 480 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Pretravel
0.118 in
Electrical Connection
Screw
Actuator Style
Hinge Roller Lever
Operating Temperature - Maximum
176 Degrees F
Center Mounting Hole Distance
1 in
Differential Travel - Maximum
0.0236 in
Operating Force - Maximum
4.22 N
Operating Temperature - Minimum
-13 Degrees F
Roller Position
Inside Offset
Operating Force - Minimum
4.22 N
Roller Material
Plastic
Roller Adjustability
Fixed
Body Material
Phenolic
Overtravel
0.005 in

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 1.94 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
