Shop OMRON

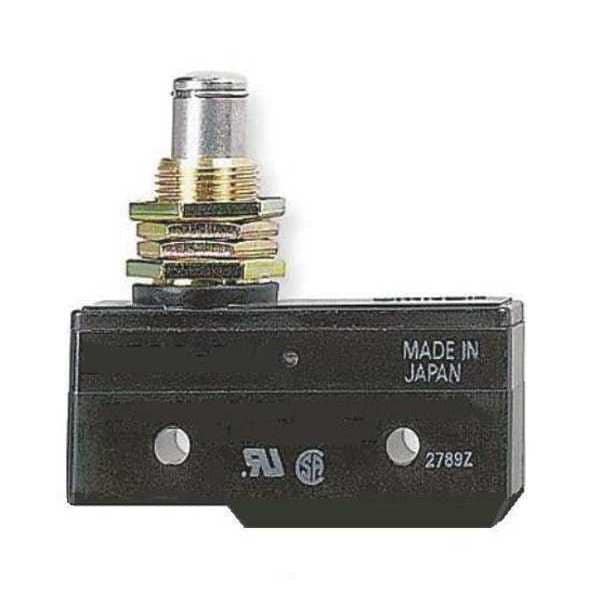

Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # A-20GQ

  • Zoro # G1936751

product price:  $28.89
/ea

Key Features

Actuator Type - Snap Action Switch
Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.89 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A-20GQ
Zoro #
G1936751
UPC #
-
Country of Origin
Japan

Dimensions

Height - Snap Action Switch
0.89 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Actuator Length
0.91"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Depth
0.69"
Length
1.94"
Height
0.89"
Body Width
1.94 in
Overall Width
1.94 in
Body Depth
1.8 in
Overall Depth
1.8 in
Overall Height
0.69 in
Mounting Hole Diameter
3/16 in
Body Height
0.69 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Housing Material
Phenolic
Terminal Type
Solder
Over Travel
0.22 in
Standards
CSA, UL Listed
Operating Temp. Range
-13 Degrees to 176 Degrees F
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
Solder Lug
Series
A
Differential Travel
0.008 in
Operating Force
14.12 to 22.06 oz
Type of Actuator
Panel Mount Plunger
Release Force
10.05 ozf
Voltage Rating
125/250/480VAC
Current Rating
20A
Contact Form
1NO/1NC
Max. Pretravel
0.051 in
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
20 A @ 480 V
Roller Adjustability
Fixed
Electrical Connection
Solder Lug
Overtravel
0.22 in
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
176 Degrees F
Center Mounting Hole Distance
1 in
Body Material
Phenolic
Operating Force - Maximum
6.13 N
Actuator Style
Plunger
Operating Force - Minimum
3.92 N
Pretravel
0.051 in
Differential Travel - Maximum
0.0079 in
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Panel Mount, Plunger, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 14 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.89 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series A
