  11. Through-Beam Photoelectric Sensor, Solder Terminal, Straight, U-Slot, Light On, NPN

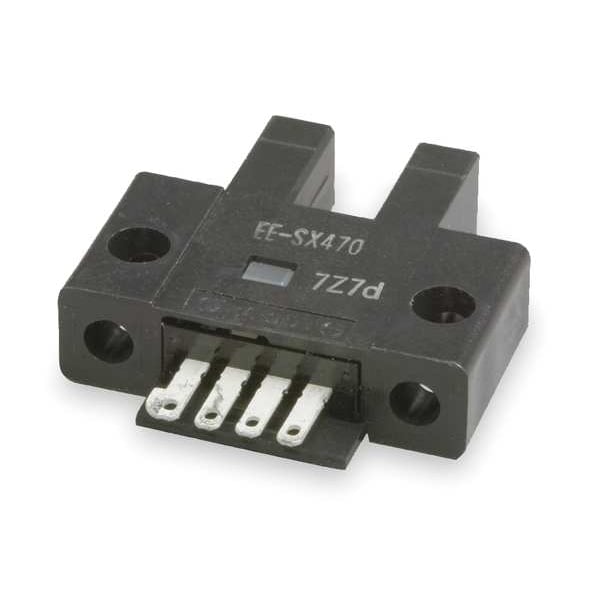

Omron Through-Beam Photoelectric Sensor, Solder Terminal, Straight, U-Slot, Light On, NPN EE-SX470 - main

Through-Beam Photoelectric Sensor, Solder Terminal, Straight, U-Slot, Light On, NPN

  • Mfr # EE-SX470

  • Zoro # G1440232

product price: $29.49
/ea

Key Features

Width
0.25"
Depth
1.11"
Features
Output Short-Cut Protection
Max. Sensing Distance - Rectangular Photoelectric Sensor
5 mm
Max. Load Current
100 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EE-SX470
Zoro #
G1440232
UPC #
-
Country of Origin
Japan

Dimensions

Width
0.25"
Depth
1.11"
Length
1.00"
Depth - Rectangular Photoelectric Sensor
28 mm
Height - Rectangular Photoelectric Sensor
25 mm
Width - Rectangular Photoelectric Sensor
6 mm
Min. Object Size
2 x 0.80mm Opaque
Overall Height
25 mm
Minimum Object Size
2mm x 0.8mm Opaque
Overall Depth
28 mm
Overall Width
6 mm

Details

Item
Photoelectric Sensor
Features
Output Short-Cut Protection
Max. Sensing Distance - Rectangular Photoelectric Sensor
5 mm
Max. Load Current
100 mA
Operating Temp. Range
-25 Degrees to 55 Degrees C
Light Source
Infrared LED
Sensing Method
Through-Beam
Operating Frequency
1,000 Hz
Power Requirement - Rectangular Photoelectric Sensor
5 to 24V DC
Standards
CE, RU
IP Rating
IP50
Electrical Connection
Solder Terminal
Power Requirement
5 to 24VDC
Max. Sensing Distance
5mm
Body Material
PBT
Response Time
0.17 msec
Output Circuit Type
NPN
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Solder Terminal
Emitted Sensor Light
Infrared
DC Voltage Rating
5-24V DC
Includes Indicator Lights
Indicator Lights Included
Load Current - Maximum
100 mA
Sensing Distance - Maximum
5 mm
Orientation
Straight
Style
U-Slot
Switching Frequency
3 kHz
Operating Mode
Light On
Series
EE-SX47
Operating Temperature - Maximum
131 Degrees F

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Light On
