Shop OSG

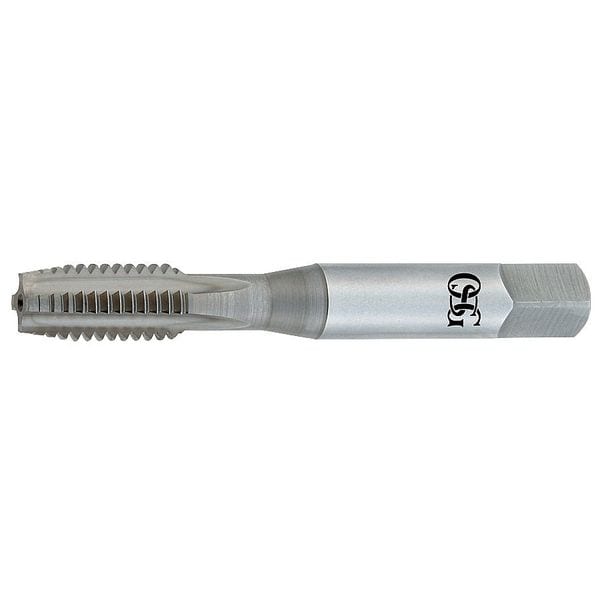

Straight Flute Hand Tap Plug, 3 Flutes

  • Mfr # 2402703

  • Zoro # G9673842

product price:  $15.19
/ea

Key Features

Shank Dia.
0.152"
Tap Chamfer
Plug
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Size
#10
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2402703
Zoro #
G9673842
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.152"
Tap Dimension Type
Inch
Tap Size
#10
Overall Length
2-3/8"
Thread Length
7/8"
Pitch Diameter Limit
H3
Tap Thread Size
#10-32
Shank Length
1 1/2 in
Square Size
0.1500 in
Thread Size
#10-32
75% Thread Drill Size
#21
65% Thread Drill Size
4.15 mm
55% Thread Drill Size
4.25 mm
Size
#10
Square Width
0.15 in
Square Length
0.25 in
Neck Length
0.87 in
Shank Diameter
0.19 in

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
Number of Pieces
1
List Number
240
Tap Grouping
Tap
Thread Direction
Right Hand
Tap Finish
Nitride
Tap Thread Type
UNF
Series
240
Cutting Direction - Machining
Right Hand
Primary Material Application ISO Code
K, N
Primary Material Application
Aluminum, Cast Iron
Measurement System
Pipe
Thread Limit
H3
Spiral Direction
Neutral
Extended Neck
Yes
Threads per Inch
32
Thread Standard
UNF
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Helix Angle
0 Degrees
Shank Type
Square
Class of Fit
2B-3B

Description

Straight Flute Tap, Thread Size #10-32, UNF, Plug, Overall Length 2.37 in, Vanadium High Speed Steel, Nitride, Right Hand, Thread Length 0.49 in, 75 Percent Thread Drill Size #21, Thread Limit H3, Class of Fit 2B-3B
