Industrial Automation Component

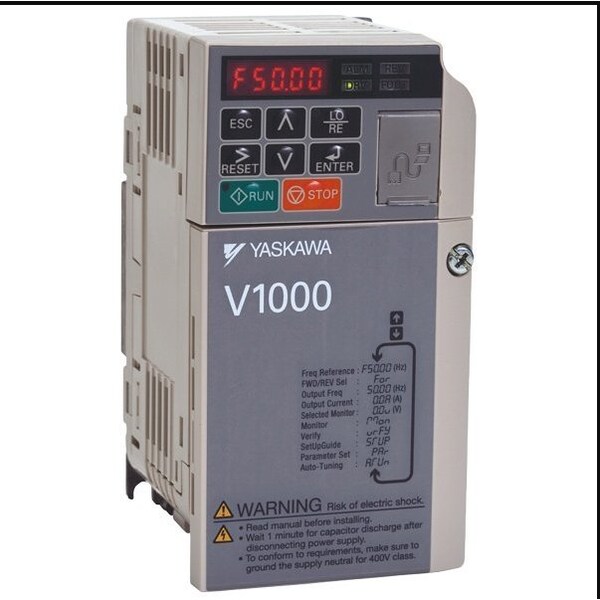

Compact vector control AC drive from Yaskawa V1000 series designed for efficient motor speed and torque control in industrial automation systems. It offers reliable performance for general-purpose applications such as conveyors, pumps, and fans with energy-efficient operation and simple parameter setup. Specifications: -Type: AC Variable Frequency Drive (VFD) -Series: V1000 -Model: CIMR-VB4A0005BBA -Input Voltage: 3-phase 380-480 V AC -Output Power: 1.5 kW (Heavy Duty / Normal Duty up to 2.2 kW motor capacity) -Output Current: 4.8 A (HD) / 5.4 A (ND) -Control Method: Open-loop vector control / V/f control -Output Frequency Range: 0.01 - 400 Hz -Overload Capacity: 150% for 60 sec (HD) / 120% for 60 sec (ND) -Motor Type: Induction motor / PM motor compatible -Communication: RS-485 (Modbus RTU supported) -EMC Filter: Built-in (model dependent) -Braking: Dynamic braking support (external resistor optional) -Protection Functions: Overvoltage, undervoltage, overload, overheating, short circuit -Enclosure Rating: IP20 (panel mount) -Cooling Method: Forced air cooling -Mounting Type: Panel mount / cabinet installation -Dimensions: Approx. 140 mm x 150 mm x 156 mm (frame dependent)
