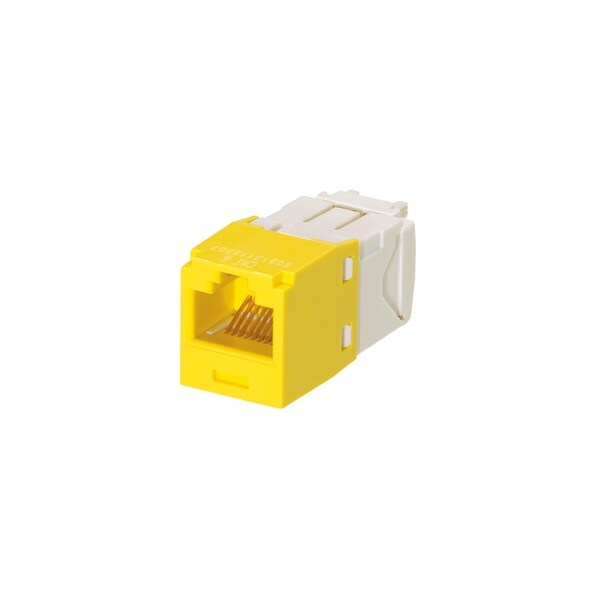

1-PORT MOD JACK IDC 8W8P UTPT568A/B CAT6 IP5 MINI-COM, PK 24

Mfr # CJ688TGYL-24
Zoro # G0526225

$428.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Color Yellow
Connector Type Jack Module - Standard
Number of Ports 1
Minimum Storage Temperature (°C) -40
Wiring Scheme T568A/T568B

See all product information

Brand Panduit
MFR # CJ688TGYL-24
Zoro # G0526225
Country of Origin Unknown
Category Voice & Data Jacks

Dimensions

Overall Length (In.)	1.5
Overall Depth (In.)	1.5
Overall Height (In.)	0.71
Overall Width (In.)	0.62

Details

Color	Yellow
Connector Type	Jack Module - Standard
Number of Ports	1
Minimum Storage Temperature (°C)	-40
Wiring Scheme	T568A/T568B
Standards Met	Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
Module Type	Mini-Com®
Contact Material	Plated Phosphor Bronze
Performance Level	Category 6
Body Material	Polycarbonate
Termination Style	TG Style
Resistance Properties	Heat-Resistant
Maximum Operating Temperature (°C)	75
Shield Type	Unshielded (UTP)
Product Type	Network Connector
Minimum Operating Temperature (°C)	-10
Maximum Storage Temperature (°C)	75
Product Name	Mini-Com Cat.6 UTP Jack Module
Connector Details	1 x RJ-45 Network Female
Certifications & Standards	ISO 11801 2nd Edition Class E standards, ANSI/TIA/EIA-568-C.2, T568A/T568B
Product Color	Yellow
Product Line	Mini-Com
Termination	Idc
Wiring	A/B Universal
Family	GIGA-CHANNEL
Sub Family	MINI-COM TX-6 JACK
