  11. Female Disconnect, vinyl barrel insulate

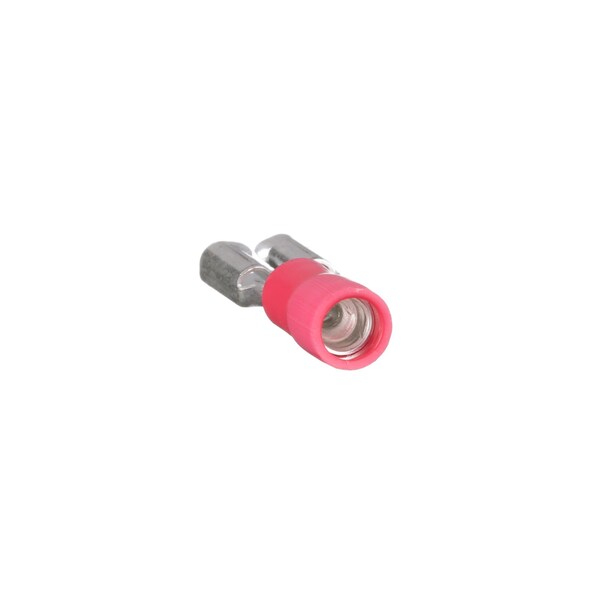

Panduit Female Disconnect, vinyl barrel insulate DVF18-250-MY - main

Female Disconnect, vinyl barrel insulate

  • Mfr # DVF18-250-MY

  • Zoro # G2862495

product price: $435.74
/pk 1000, $0.44/ea
Free Shipping & Returns

Key Features

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Overall Length
0.81 in
Features
Flame Retardant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DVF18-250-MY
Zoro #
G2862495
UPC #
7498341068
Country of Origin
Mexico

Dimensions

Overall Length
0.81 in
Height
0.12 in
Width
0.3"
Maximum Copper Conductor Size (AWG)
#18
Tab Size (In.)
0.250 x 0.032
Minimum Wire Size (AWG)
#22
Insulation Diameter (mm)
3.5
Maximum Wire Size (AWG)
#18
Wire Strip Length (mm)
7.1
Minimum Metric Conductor Size (mm²)
0.5
Insulation Diameter (In.)
0.14
Maximum Wire Insulation Diameter (mm)
3.5
Overall Width (mm)
7.4
Overall Thickness (mm)
0.4
Overall Length (In.)
0.81
Overall Thickness (In.)
0.16
Overall Length (mm)
20.6
Minimum Copper Conductor Size (AWG)
#22
Overall Height (In.)
0.12
Overall Height (mm)
3
Overall Width (In.)
0.29
Maximum Wire Insulation Diameter (In.)
0.16
Maximum Metric Conductor Size (mm²)
1
Tab Size (mm)
6.3 x 0.8
Wire Strip Length (In.)
11933

Details

For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Red
Insulation Type
Barrel Insulated
Features
Flame Retardant
Finish
Tinned
Flammability Rating
UL94V-0
Insulation Material
Vinyl
Maximum Operating Temperature (°F)
194
Barrel Type
Funnel
Product Type
Disconnect
Maximum Voltage (kV)
0.3
Note
DVF18-250-MY replaces DVF18-250-M
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°C)
90
Maximum Voltage (V)
300
Tongue Angle
Straight
Disconnect Type
Female Disconnect
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Base Material
Brass
Product Material
Copper
Connector Details
1 x Quick Disconnect
Contact Plating
Tin
Product Name
Terminal Connector
Product Color
Red
Product Class
Wire Termination
Max Operating Temperature
90 degrees celsius

Description

Female Disconnect, vinyl barrel insulated, 22 - 18 AWG, .250 x .032 tab size, funnel entry

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
