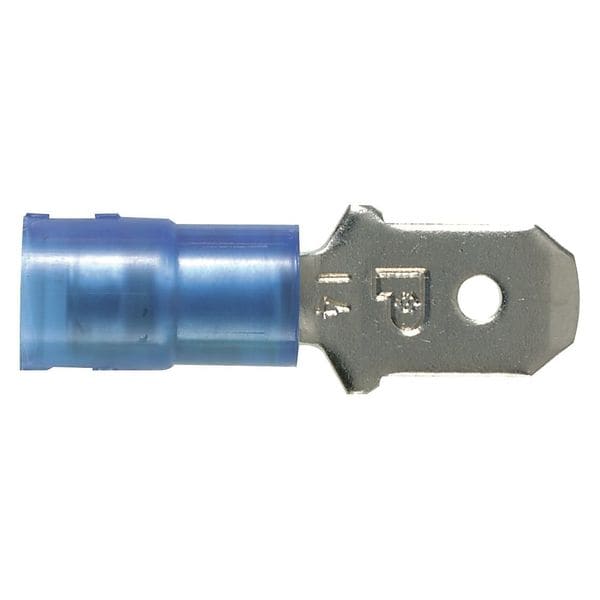

Male Disconnect, Blue, 16-14AWG, PK100

Mfr # DNF14-250M-C
Zoro # G0159175

$114.69

10% off

$102.99

/pk 100, $1.03/ea

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Insulation Partial
For Use With CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Insulation Color Blue
Color Code Blue
Wire Range 16 to 14 AWG

See all product information

Brand Panduit
MFR # DNF14-250M-C
Zoro # G0159175
UPC #
074983827183
Country of Origin Mexico
Category Wire Disconnects

Dimensions

Overall Length	0.9 in
Tab Size	0.032 in x 0.250 in
Barrel Inside Dia.	0.09 in
Width	0.3"
Barrel Inside Diameter	0.09 in
Tab Width	0.25 in
Maximum Wire Size	14 AWG
For Wire Size	14 AWG, 16 AWG
Strip Length	1/4 in
Minimum Wire Size	16 AWG
Minimum Copper Conductor Size (AWG)	#16
Overall Width (mm)	6.4
Minimum Metric Conductor Size (mm²)	1.5
Insulation Diameter (mm)	4.1
Maximum Copper Conductor Size (AWG)	#14
Wire Strip Length (In.)	11933
Maximum Wire Size (AWG)	#14
Overall Width (In.)	0.25
Maximum Metric Conductor Size (mm²)	2.5
Maximum Wire Insulation Diameter (mm)	4.1
Overall Length (In.)	0.9
Tab Size (mm)	6.3 x 0.8
Overall Length (mm)	22.9
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.250 x 0.032
Maximum Wire Insulation Diameter (In.)	0.16
Minimum Wire Size (AWG)	#16
Insulation Diameter (In.)	0.16
Minimum Metric Conductor Size (mmÂ²)	1.5
Maximum Metric Conductor Size (mmÂ²)	2.5

Details

Item	Male Disconnect
Insulation	Partial
For Use With	CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Insulation Color	Blue
Color Code	Blue
Wire Range	16 to 14 AWG
Connection Type	Crimp
Insulation Type	Nylon
Seam	Sleeved Barrel
Connector Type	Quick Disconnect
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Connection Material	Nickel-Plated Copper
Standards	C22.2 No.153, CSA Certified LR31212, UL 310, UL Listed 20H3 E78522
Features	Flame Retardant
Termination Style	Crimp
UL 94 Flammability Rating	HB
Tab Thickness	0.032 in
Maximum Voltage	600 V
Disconnect Style	Tab
Terminal Type	Tab
Special Features	Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Male Tab can be Inserted and Removed From the Female Disconnect Without the Use of Tools for Lower Installed Cost, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications
Seam Style	Sleeved Barrel
Minimum Operating Temperature	-60 Degrees F
Contact Finish	Nickel
Terminal Types	Male Tab
Insulation Material	Nylon
RoHS Compliant	Yes
Maximum Operating Temperature	221 Degrees F
Contact Material	Copper
Insulation Coverage	Partial Coverage
Barrel Style	Grip Sleeve
Flammability Rating	UL94-HB
Base Material	Copper
Overall Thickness (In.)	0.03
Maximum Voltage (kV)	0.6
Maximum Operating Temperature (°C)	105
Disconnect Type	Male Tab Disconnect
Tongue Angle	Straight
Overall Thickness (mm)	0.8
Product Type	Disconnect
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Finish/Coating	Nickel-Plated
Maximum Operating Temperature (°F)	221
Maximum Voltage (V)	600
Barrel Type	Standard
Product Name	Terminal Connector
Environmentally Friendly	Yes
Product Color	Blue
Product Material	Copper
Connector Details	1 x Quick Disconnect
Contact Plating	Nickel
Packaging Type	Bottle
Sub Brand	Pan-TermÂ®
Maximum Operating Temperature (Â°C)	105
Maximum Operating Temperature (Â°F)	221

Description

Male Disconnect, Contact Finish Nickel, Contact Material Copper, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Sleeved Barrel
