  11. Male Disconnect, Red, 22-18AWG, PK100

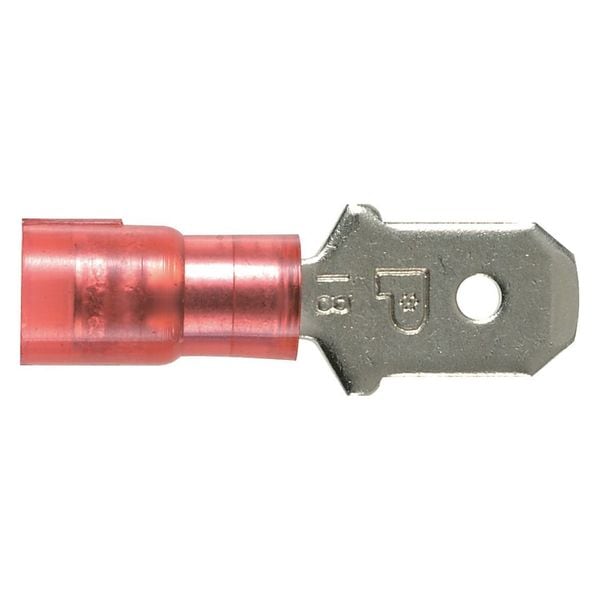

Panduit Male Disconnect, Red, 22-18AWG, PK100 DNF18-250M-C - main

Male Disconnect, Red, 22-18AWG, PK100

  • Mfr # DNF18-250M-C

  • Zoro # G0159148

product price: $115.99
/pk 100, $1.16/ea
Free Shipping & Returns

Key Features

Insulation
Partial
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Insulation Color
Red
Color Code
Red
Connection Type
Crimp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNF18-250M-C
Zoro #
G0159148
UPC #
074983827121
Country of Origin
Mexico

Dimensions

Overall Length
0.9 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.08 in
Width
0.3"
Barrel Size
Standard
Minimum Wire Size
22 AWG
Strip Length
1/4 in
Barrel Inside Diameter
0.08 in
Tab Thickness
0.032 in
Maximum Wire Size
18 AWG
Tab Width
0.25 in
Tab Size (mm)
6.3 x 0.8
Overall Width (In.)
0.25
Overall Thickness (In.)
0.03
Maximum Wire Size (AWG)
#18
Overall Width (mm)
6.4
Minimum Metric Conductor Size (mm²)
0.5
Wire Strip Length (mm)
7.1
Insulation Diameter (mm)
3.5
Overall Length (In.)
0.9
Maximum Wire Insulation Diameter (In.)
0.14
Maximum Wire Insulation Diameter (mm)
3.5
Maximum Metric Conductor Size (mm²)
1
Insulation Diameter (In.)
0.14
Overall Thickness (mm)
0.8
Maximum Copper Conductor Size (AWG)
#18
Minimum Copper Conductor Size (AWG)
#22
Tab Size (In.)
0.250 x 0.032
Wire Strip Length (In.)
11933
Overall Length (mm)
22.9
Minimum Wire Size (AWG)
#22
Maximum Metric Conductor Size (mm²)
1
Minimum Metric Conductor Size (mm²)
0.5

Details

Item
Male Disconnect
Insulation
Partial
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Insulation Color
Red
Color Code
Red
Connection Type
Crimp
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Seam
Sleeved Barrel
Connector Type
Quick Disconnect
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Connection Material
Nickel-Plated Copper
Standards
C22.2 No.153, CSA Certified LR31212, UL 310 Listed, UL Listed 20H3 E78522
Features
Flame Retardant
Disconnect Style
Tab
Minimum Operating Temperature
-60 Degrees F
Terminal Type
Tab
Contact Finish
Nickel
Special Features
Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Male Tab can be Inserted and Removed From the Female Disconnect Without the Use of Tools for Lower Installed Cost, Male Tab Couples With (All 0.250 X 0.032) Female Disconnects, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Vibration Resistant
RoHS Compliant
Yes
Insulation Coverage
Partial Coverage
Maximum Operating Temperature
221 Degrees F
Maximum Voltage
600 V
Contact Material
Copper
Seam Style
Sleeved Barrel
Insulation Material
Nylon
UL 94 Flammability Rating
HB, V-2
Termination Style
Crimp
Barrel Style
Grip Sleeve
Maximum Voltage (V)
600
Finish/Coating
Nickel-Plated
Tongue Angle
Straight
Flammability Rating
UL94-HB
Maximum Operating Temperature (°C)
105
Base Material
Copper
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (kV)
0.6
Disconnect Type
Male Tab Disconnect
Barrel Type
Standard
Maximum Operating Temperature (°F)
221
Product Type
Disconnect
Contact Plating
Nickel
Environmentally Friendly
Yes
Product Color
Red
Connector Details
1 x Quick Disconnect
Product Material
Copper
Product Name
Terminal Connector
Sub Brand
Pan-Term®
Packaging Type
Bottle
Maximum Operating Temperature (°C)
105
Maximum Operating Temperature (°F)
221

Description

Wire Disconnect, Contact Finish Nickel, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating HB, V-2, RoHS Compliant Yes, Seam Style Seamless
