Shop PANDUIT

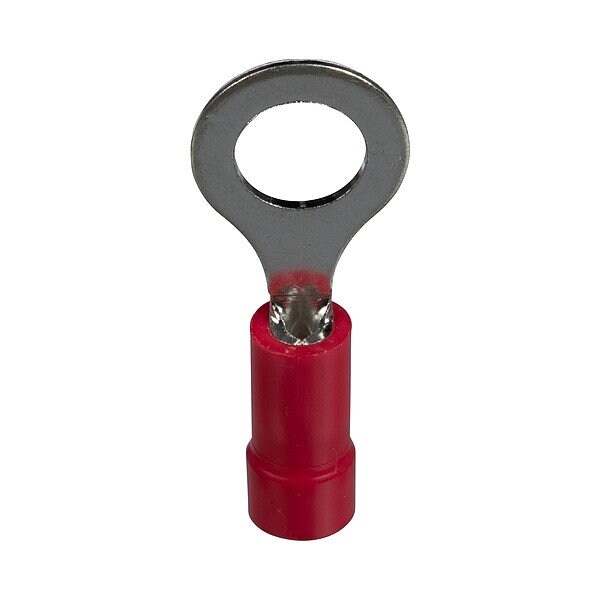

Ring Terminal, PK 25

  • Mfr # EV18-14RB-Q

  • Zoro # G021952644

product price:  $27.59
/pk 25, $1.10/ea

Key Features

Terminal Shape
Ring
Special Features
Insulated Ring Terminals are a Reliable and Economical Option That withstand a Wide Range of General-purpose Applications
Minimum Wire Size
22 AWG
Barrel Inside Diameter
0.15 in
Strip Length
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EV18-14RB-Q
Zoro #
G021952644
UPC #
613056367388
Country of Origin
Mexico

Dimensions

Minimum Wire Size
22 AWG
Barrel Inside Diameter
0.15 in
Strip Length
3/8 in
Maximum Wire Size
18 AWG
Tongue Length
0.56 in
Barrel Outside Diameter
0.15 in
Stud Size
1/4 in
Hole Diameter
0.27 in
Barrel Length
0.44 in
Tongue Width
0.46 in
Overall Length
1.11 in
Tongue Thickness
0.03 in
Wire Rope Length
1.11 in

Details

Terminal Shape
Ring
Special Features
Insulated Ring Terminals are a Reliable and Economical Option That withstand a Wide Range of General-purpose Applications
Compatible Manufacturer Model Number
CT-100A, CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-600-A (CT-550CH)
Contact Material
Copper
Barrel Style
Butted Funnel Entry
Contact Finish
Tin
Standards
CSA Certified LR31212, UL Listed 587H E52164
Hole Spacing
0.23 in
Item
Ring Terminal
Insulation Material
Vinyl
Series
EV18
Compatible with Product Type
Crimp Tools, Crimpers, Wire Strippers
Seam Style
Butted
Insulation Color
Red
Maximum Voltage
600 V
Insulation Type
Vinyl
Termination Style
Crimp
Maximum Operating Temperature
221 Degrees F
Insulation Coverage
Partial Coverage

Description

StrongHold(TM) EV18-14RB-Q Ring Terminal, Insulation Color Red, Insulation Material Vinyl, Max. Operating Temp. 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Tongue Width 0.46 in, Contact Finish Tin, Contact Material Copper, Standards CSA LR31212, UL 587H E52164, Barrel Inside Diameter 0.15 in, Barrel Length 0.44 in, Barrel Outside Diameter 0.15 in, Barrel Style Butted Funnel Entry, Compatible Grainger Part Number 376U11, 38YU60, 38YU61
