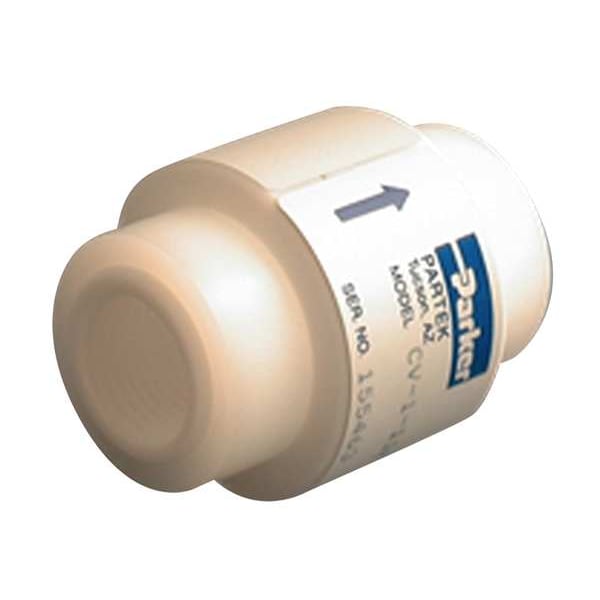

Parker 1/4" FNPT PTFE Check Valve CV-1-1144 - main

1/4" FNPT PTFE Check Valve

  • Mfr # CV-1-1144

  • Zoro # G1494552

product price: $460.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1/4"
Connection Type
FNPT
Connection
FNPT
Body Material
PTFE
Max. Steam Pressure - Valves
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CV-1-1144
Zoro #
G1494552
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Width
1 15/64 in
Overall Height
1 15/64 in
Length
2 1/2 in
Pipe or Tube Size - Check Valves
1/4 in
Size
1/4"
Overall Length
2.5 in
Pipe or Tube Size
1/4 in
Connection Size - Side 1
1/4 in
Nominal Valve Size
1/4 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
PTFE
Max. Steam Pressure - Valves
Not Rated
Min. Temp. - Valves
-32 Degrees F
Cracking Pressure - Check Valves
0.250 to 0.750 psi
Max. Temp. - Valves
266 Degrees F
Material of Construction
PTFE
Item
Check Valve
Spring Material
PTFE
Application - Valves
Corrosives
Sub-Category
PTFE
Connection Type - Check Valves
FNPT x FNPT
Item - Check Valves
Check Valve
Flow Design
Single
Max. Pressure
120 psig
Body Material - Valves
PTFE
Spring Material - Check Valves
PTFE
Mechanism and Body Design
Inline
Cracking Pressure
0.25 to 0.75 psig
Max. Temp.
Ambient: 32 Degrees to 212 Degrees F, Fluid: 32 Degrees to 266 Degrees F
Seat Material
PTFE
Seal Material
PTFE
Seal
Viton
Type
Valve
NSF Certifications for Food and Drinking Water
Not Rated
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-32 Degrees F
Connection Gender - Side 1
Female
Check Mechanism Material
PTFE
Maximum Pressure - Steam
Not Rated
Maximum Pressure - Operating
120 psig
For Media
Corrosives
Includes Counterweight
No Counterweight
Operating Temperature - Maximum
266 Degrees F
Connection Type - Side 1
NPT
Silent Check
Silent
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
Average Surface Roughness (Ra)
24 Ra
Valve Series
CV-1

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline, Body Material - Valves PTFE, Pipe or Tube Size 1/4 in, Connection Type FNPT x FNPT, Cracking Pressure 0.250 to 0.750 psi, Max. Temp. - Valves 266 Degrees F, Min. Temp. - Valves -32 Degrees F, Max. Steam Pressure - Valves Not Rated, Spring Material PTFE, Application - Valves Corrosives, Length 2 1/2 in, Width 1 15/64 in, Overall Height 1 15/64 in, Standards Not Applicable
