Parker

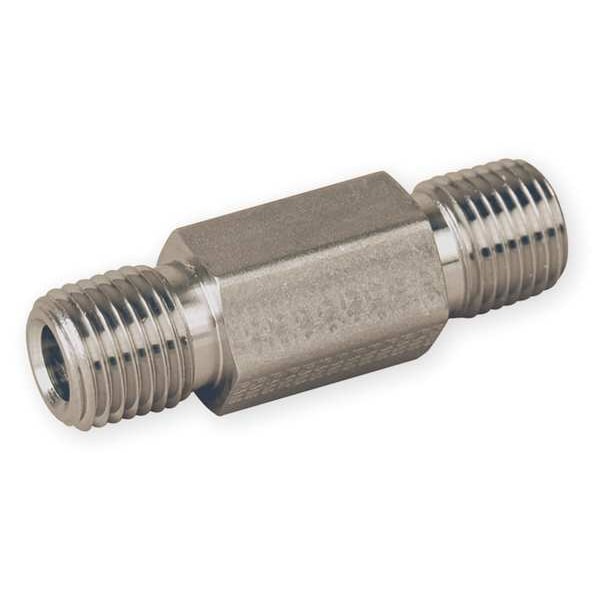

1/4" MNPT 316 SS Hex Long Nipple

Parker 1/4" MNPT 316 SS Hex Long Nipple 4-4 MHLN-SS 2.0
Tap to zoom
Hover or click to zoom
$26.55
  • Pipe Size - Pipe Fitting: 1/4"
  • Specific Fitting Shape: Hex Long Nipple
  • Pipe Fitting Material: 316 Stainless Steel
See full product details
Orders over $75 ship free.

Total: $26.55

Parker #4-4 MHLN-SS 2.0 Specifications

  • Pipe Size - Pipe Fitting: 1/4"
  • Specific Fitting Shape: Hex Long Nipple
  • Pipe Fitting Material: 316 Stainless Steel
  • Fitting Connection Type: MNPT
  • Basic Pipe Fitting Shape: Nipple
  • Basic Pipe Fitting Material: Metal
  • Item: Hex Long Nipple
  • Fitting Length: 2 in
  • Hex Size: 5/8"
  • Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1
  • Temp. Range: -425 Degrees to 1200 Degrees F
  • Fittings Sub-Category: Hex Nipples
  • Specific Pipe Fitting Shape: Hex Long Nipple
  • Pipe Fitting Connection Type: MNPT
  • Pipe Size (Fittings): 1/4"
  • Max. Pressure: 7500 psi
  • Pipe Fitting Length: 2"
  • Connection Type: Threaded
  • Pressure Level: Extreme Pressure (3001 psi +)
  • Overall Length: 2 in
  • Fitting Pipe Size: 1/4 in x 1/4 in
  • Fitting Side B Gender: Male
  • Fitting Side B Type: NPT
  • Maximum Operating Pressure: 7,500 psi
  • Pipe Fitting Gender: Male Male
  • Fitting Side A Gender: Male
  • Fitting Side A Type: NPT
  • Material Grade: 316
  • Fitting Side B Nominal Pipe Size: 1/4 in
  • Gender: Male
  • Includes Seal: No
  • Fitting Side A Nominal Pipe Size: 1/4 in
  • Pipe Fitting Material & Grade: 316 Stainless Steel
  • Low Lead Compliance Level: Not Compliant
  • Fitting Shape: Nipple
  • Class/Pressure: 7,500 psi
  • Includes Pre-Applied Thread Sealant: No
  • Threading: NPT
  • Fitting Material: 316 Stainless Steel
  • Color: Silver
  • Country of Origin (subject to change): United States

Description

Hex Long Nipple, Pipe Fitting Material 316 Stainless Steel, Pipe Size - Pipe Fitting 1/4 in, Fitting Connection Type MNPT, Max. Pressure 7500 psi, Hex Size 5/8 in, Temp. Range -425 Degrees to 1200 Degrees F, Standards ANSI B1.20.1, ANSI B31.1, ANSI B31.3, 2 in Fitting Length
