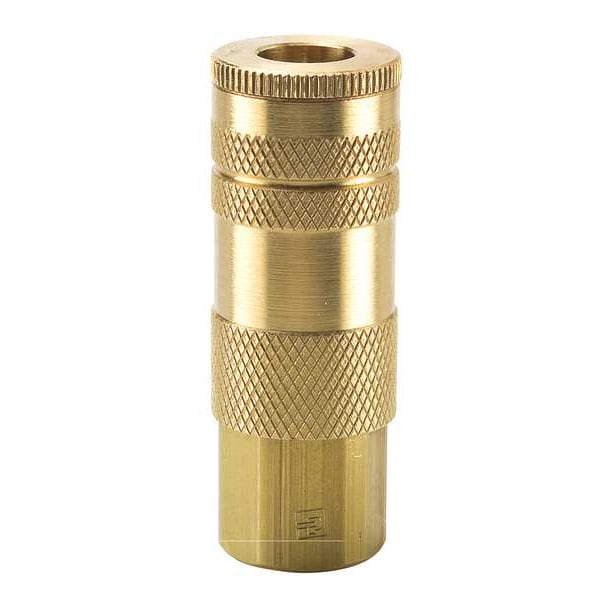

Coupler Body, Brass, FNPT, 1/4 In. Pipe
Mfr # B73
Zoro # G4874457
Key Features
Specifications
Product Information
Dimensions
Details
Description
The PARKER - B73 is for use with pneumatic systems. It is configured for connection and disconnection without tools when used as specified, with a sleeve locking mechanism for rapid connection and disconnection. It features a female hose fitting and connects with a 1/4-inch NPT threaded size in accordance with the Lincoln interchange standard. The coupling includes an integral valve with a tubular valve type to control airflow and provides a sealed connection using nitrile seals. Constructed from brass, this fitting is rated for a maximum working pressure of 300 psi at 70°F and has a maximum flow rate of 707.92 lpm. Temperature rating: -40°F to 250°F.
Key Features:
- Application: Pneumatic systems
- Connection Type: 1/4" NPT female thread
- Coupling Component: Socket
- Coupling Locking Type: Sleeve
- Coupling Size: 1/4 in
- Hose Fitting Gender: Female
- Hose Fitting Size: 1/4 in
- Includes Valve: Yes, tubular type
- Material: Brass
- Max. Flow Rate: 707.92 lpm
- Max. Working Pressure @ 70°F: 300 psi
- Max. Outside Diameter: 7/8 in
- Overall Length: 2.38 in
- Seal Material: Nitrile
- Temperature Range: -40°F to 250°F
